Transfer Clutch: Removal

Remove the transmission assembly from the vehicle. Refer to REMOVAL .
Remove the extension case. Refer to REMOVAL .
Remove the transfer clutch assembly.

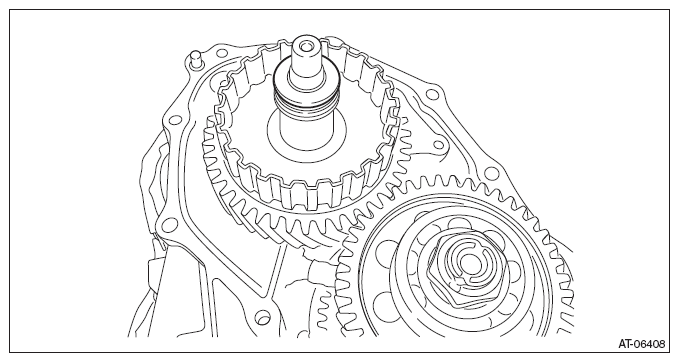

Fig 1: Identifying Transfer Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust bearing.

Fig 2: Identifying Thrust Bearing
Courtesy of SUBARU OF AMERICA, INC.
Remove the seal ring from transfer clutch assembly.

Fig 3: Locating Transfer Clutch Assembly Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Remove the seal ring from the transfer driven gear assembly.

Fig 4: Locating Transfer Driven Gear Assembly Seal Ring
Courtesy of SUBARU OF AMERICA, INC.
