Parking Pawl: Installation

Set the range select lever to the "N" range.
Install the parking pawl shaft, return spring and parking pawl.
NOTE: Make sure that the end of return spring sticks out of parking pawl as shown in (a). Make sure that the other end contacts the rib of transmission case as shown in (b).

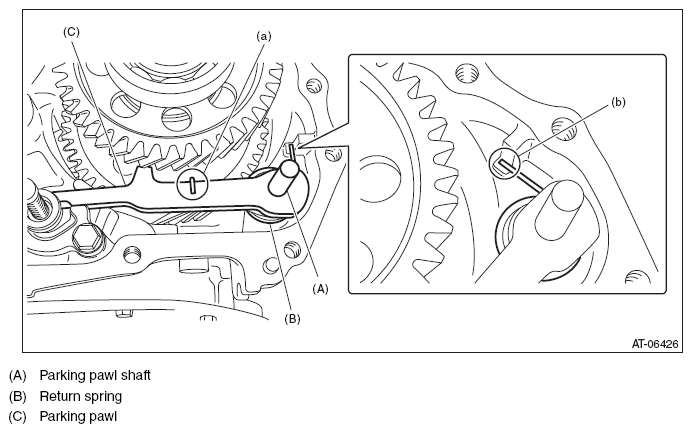

Fig 1: Identifying Parking Pawl Shaft, Return Spring And Parking Pawl Installation Position
Courtesy of SUBARU OF AMERICA, INC.
Install the extension case. Refer to INSTALLATION .
Install the transmission assembly to the vehicle. Refer to INSTALLATION .
