Forward Clutch Assembly

Remove the snap ring.
Remove the retaining plate, drive plate, driven plate and dish plate.

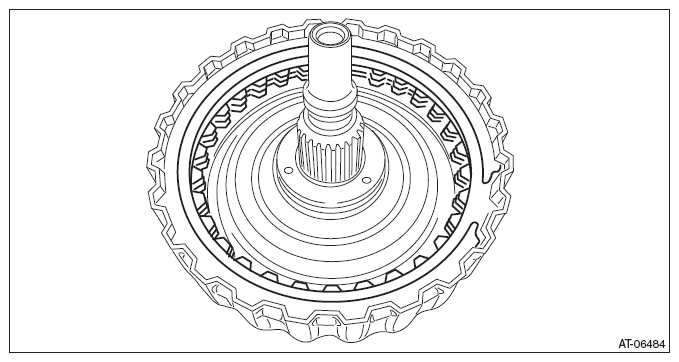

Fig 1: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Compress the return spring using the ST to remove the snap ring.
ST1 18762AA010 COMPRESSOR SPECIAL TOOL

ST2 398673600 COMPRESSOR

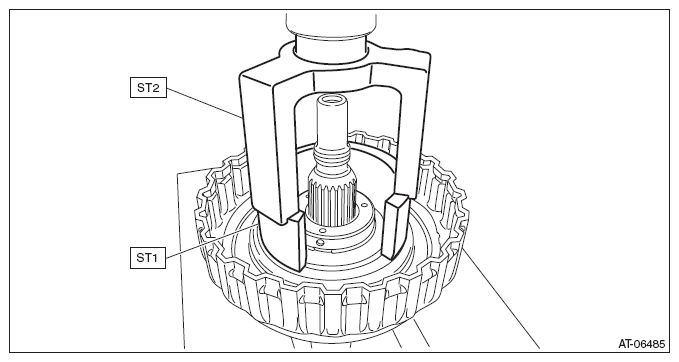

Fig 2: Removing/Installing Snap Ring Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.
Remove the chamber COMPL and snap ring.

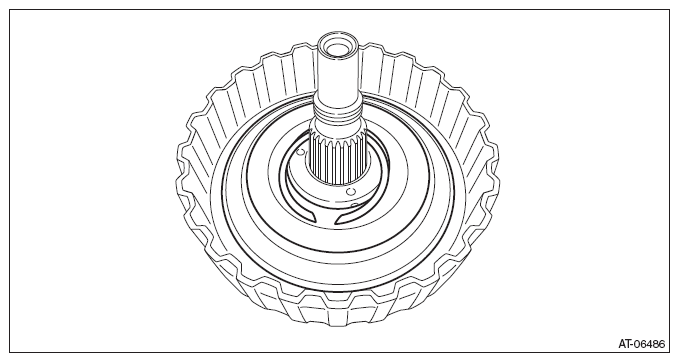

Fig 3: Identifying Chamber COMPL And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

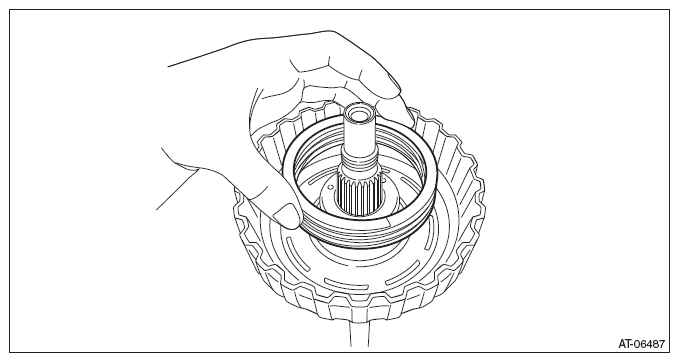

Fig 4: Removing/Installing Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the forward clutch piston by blowing compressed air intermittently from the forward clutch carrier hole.

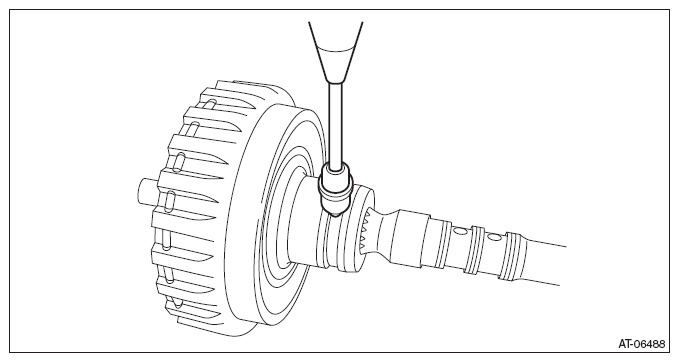

Fig 5: Checking Forward Clutch Piston Operation By Blowing Compressed Air From Forward Clutch Carrier Hole
Courtesy of SUBARU OF AMERICA, INC.
