Cylinder Block

  1. Remove the water jacket spacer from the cylinder block RH and cylinder block LH.
    Fig 1: Identifying Cylinder Block And Related Components
    G08548118Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the oil separator cover from cylinder block RH.

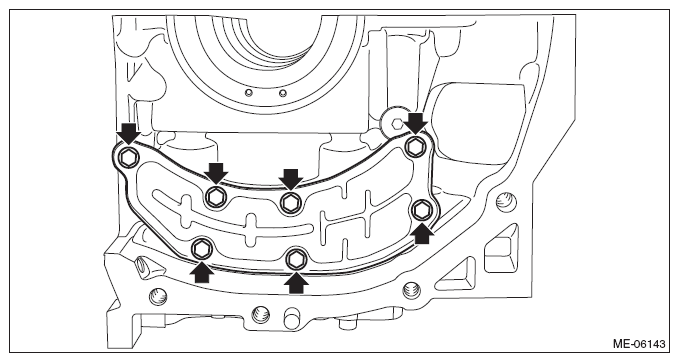

    Fig 2: Locating Cylinder Block RH Oil Separator Cover Mounting Bolts
    G08317230Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the liquid gasket from cylinder block RH.
  4. Remove the cylinder block plug (A) and the main gallery plug (B) from cylinder block RH.

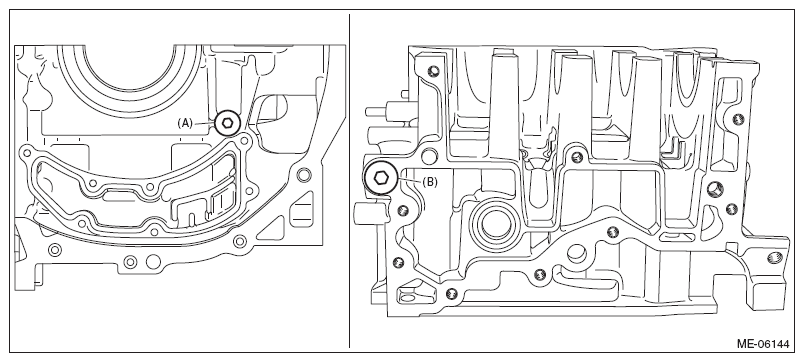

    Fig 3: Identifying Cylinder Block RH Cylinder Block Plug And Main Gallery Plug
    G08317231Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the liquid gasket from the thread holes of the cylinder block RH, and from the threaded portions of cylinder block plug and main gallery plug.
  6. Remove the cylinder block plate from cylinder block LH.
    Fig 4: Locating Cylinder Block Plate Mounting Bolts
    G08317232Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the main gallery plug from cylinder block LH.

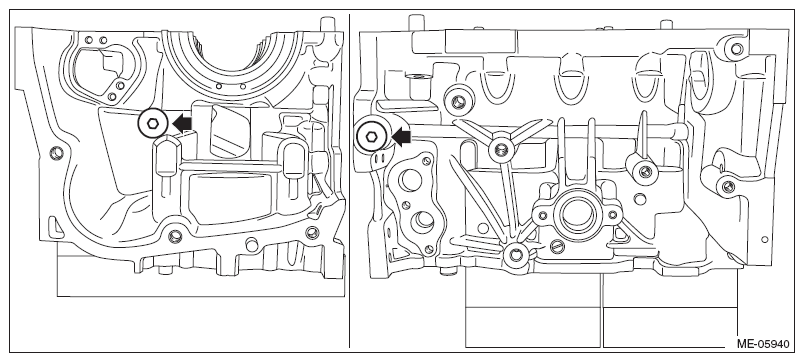

    Fig 5: Locating Cylinder Block LH Main Gallery Plug
    G08317233Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the liquid gasket from the thread holes of the cylinder block LH and main gallery plug.
