Clutch Fluid: Inspection

CAUTION: Be careful not to spill the brake fluid. Brake fluid spilled on the vehicle body will harm the paint surface; wash it off with water and wipe clean quickly if spilled.
  1. Park the vehicle on a level surface.
  2. Check the clutch fluid level using the scale on the outside of the reservoir tank. If the clutch fluid level is below "MIN", fill the clutch fluid up to "MAX" level, and make sure that there is no leakage.

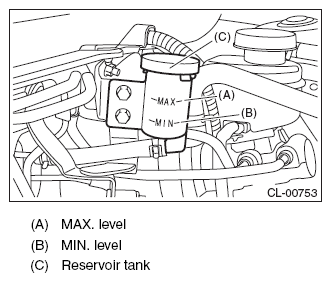

    Fig 1: Checking Clutch Fluid Level
    G08582220Courtesy of SUBARU OF AMERICA, INC.
