Wheel Arch Height
- Park the vehicle on a level surface.
- Empty the vehicle so that it is at "curb weight". (Empty the luggage compartment, load the spare tire, jack and service tools, and fill up the fuel tank.)
- Set the steering wheel in a straight-ahead position, and stabilize the suspension by moving the vehicle in a straight line for 5 m (16 ft) or more.

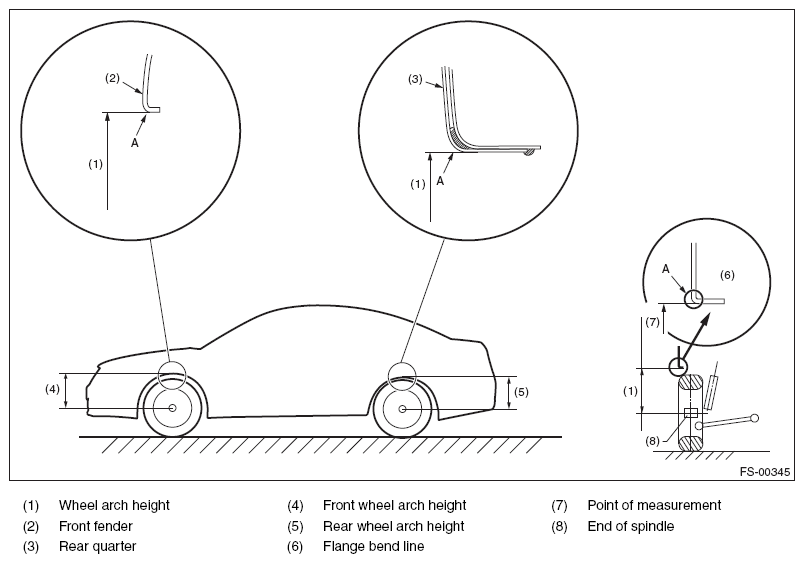

- Suspend a thread from the wheel arch (point "A" in the figure below) and affix at a position directly above the center of wheel.
- Measure the distance between the point "A" and the center of wheel.
Courtesy of SUBARU OF AMERICA, INC.
| Wheel arch height specification mm (in) (Tolerance: +12 mm-24 mm
(+0.47 in-0.94 in
)) |
| Tire size |
P205/60R16 P215/50R17 |
P225/50R17 P225/45R18 |
P225/60R17 P215/70R16 |
| Front |
403 (15.9) |
395 (15.6) |
469 (18.5) |
| Rear |
392 (15.4) |
387 (15.2) |
474 (18.7) |
