Passenger's Airbag Module

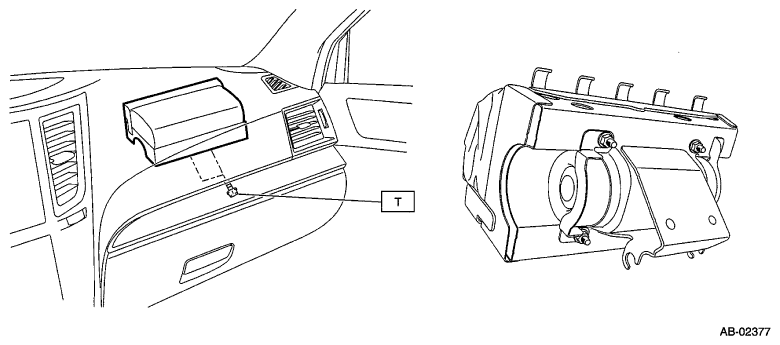

Fig 1: Identifying Passenger's Airbag Module
G06653051Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
