Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the O-ring.
    NOTE:
    • Use new O-rings.
    • Apply CVTF to the O-ring.
      Fig 1: Identifying Oil Pump O-Rings
      G08318182Courtesy of SUBARU OF AMERICA, INC.
  2. Install the plate and the oil pump.
    NOTE: Apply CVTF to the bolt.

    Tightening torque:

    8.5 N.m (0.9 kgf-m, 6.3 ft-lb)

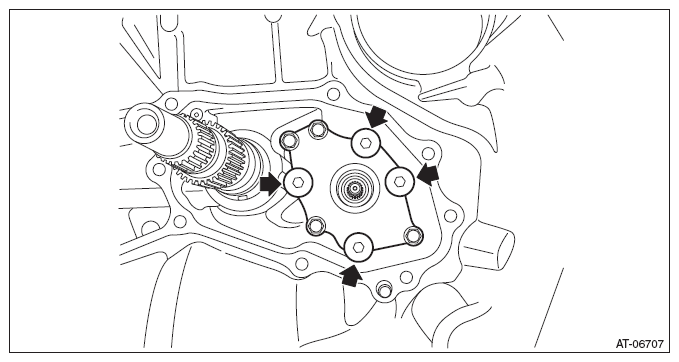

    Fig 2: Locating Oil Pump And Plate Mounting Bolts
    G08318181Courtesy of SUBARU OF AMERICA, INC.
  3. Install the oil pump chain cover. Refer to INSTALLATION .
  4. Install the torque converter assembly. Refer to INSTALLATION .
  5. Install the transmission assembly to the vehicle. Refer to INSTALLATION .
