Oil Pump ASSY

WARNING: This page is about a different variant/trim than selected.

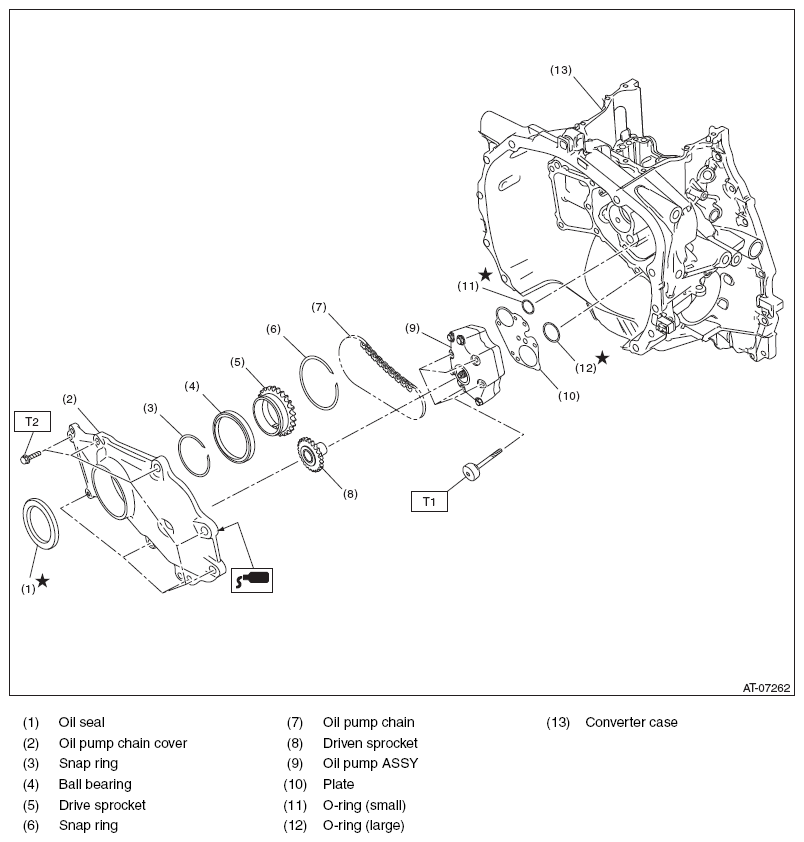

Fig 1: Oil Pump Assembly Replacement Components With Torque Specifications
G08578523Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8.5 (0.9, 6.3)

T2: 21 (2.1, 15.5)
