Extension Case: Assembly

WARNING: This page is about a different variant/trim than selected.

Press-fit the dust cover into extension case.
Install the extension case oil seal to extension case. Refer to REPLACEMENT .
Install all plugs.
NOTE:
- Use a new O-ring or a gasket.
- Apply CVTF to the O-ring.
Tightening torque:

T1: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T2: 35 N.m (3.6 kgf-m, 25.8 ft-lb)

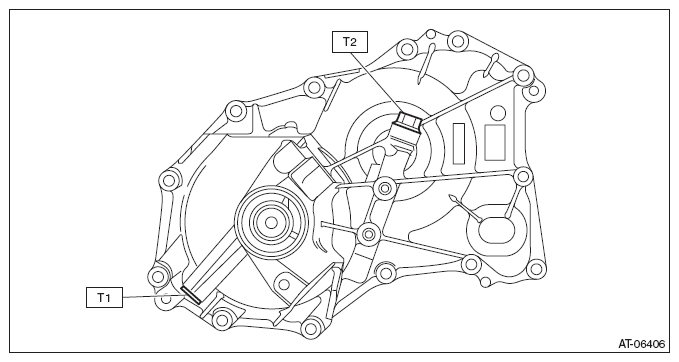

Fig 1: Extension Case Oil Seal And O-Ring With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
