Section 7 (Engine Cooling System (H6DO)): Radiator: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: The radiator is pressurized when the engine and radiator are hot. Wait until engine and radiator cool down before working on the radiator.

Remove the collector cover.
NOTE:
Follow the steps below when removing the collector cover.
1. Pull up the two points at the rear (A).
2. Pull up the two points at the front (B) while moving them forward.
Fig 1: Removing Collector Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the under cover. Refer to REMOVAL .
Drain engine coolant. Refer to DRAINING OF ENGINE COOLANT .
Disconnect the integrated connector of radiator main fan & fan motor and radiator sub fan & fan motor.

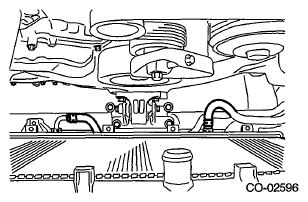

Fig 2: Locating Radiator Main Fan & Fan Motor And Radiator Sub Fan & Fan Motor Integrated Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator outlet hose from radiator lower.

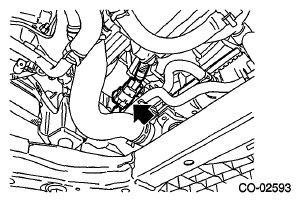

Fig 3: Identifying Radiator Lower Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the air intake duct. Refer to REMOVAL .
Remove the grille bracket.
NOTE: Remove ten clips when removing the grille bracket.

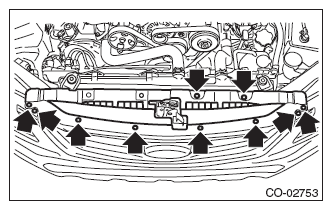

Fig 4: Locating Grille Bracket Mounting Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator main fan & fan motor and radiator sub fan & fan motor. Refer to REMOVAL and REMOVAL .
Disconnect the ATF radiator inlet hose and outlet hose from the radiator.
NOTE: Plug the ATF radiator inlet hose and outlet hose to prevent ATF from leaking.

Fig 5: Identifying ATF Radiator Inlet Hose And Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator upper brackets.

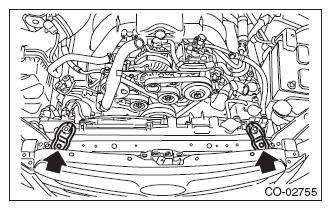

Fig 6: Locating Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
Lift the radiator up and away from vehicle.
Remove the radiator lower cushion.
