Air Cleaner Element: Installation
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal.
CAUTION:
Be sure to use SUBARU genuine air cleaner element depending on the engine type when replacing the air cleaner elements. Using other air cleaner element may affect the engine performance.
NOTE:
- Check that there are no foreign objects in the air cleaner case.

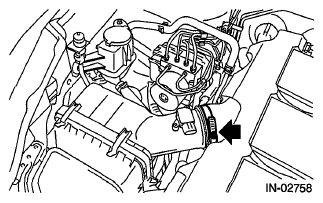

- When installing the air cleaner case (rear), align the protrusion of the air cleaner case (rear) to the hole on the air cleaner case (front) to install.
Tightening torque:
3 N.m (0.3 kgf-m, 2.2 ft-lb)
