Control Module

WARNING: This page is about a different variant/trim than selected.

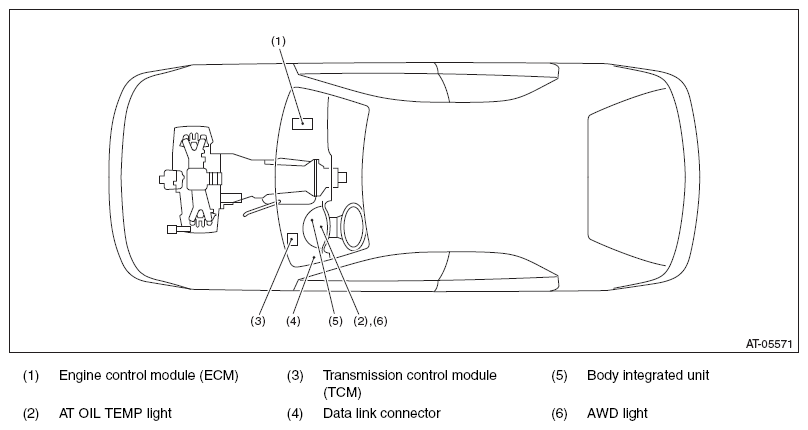

Fig 1: Control Module Electrical Component Location (1 Of 2)
G08579082Courtesy of SUBARU OF AMERICA, INC.

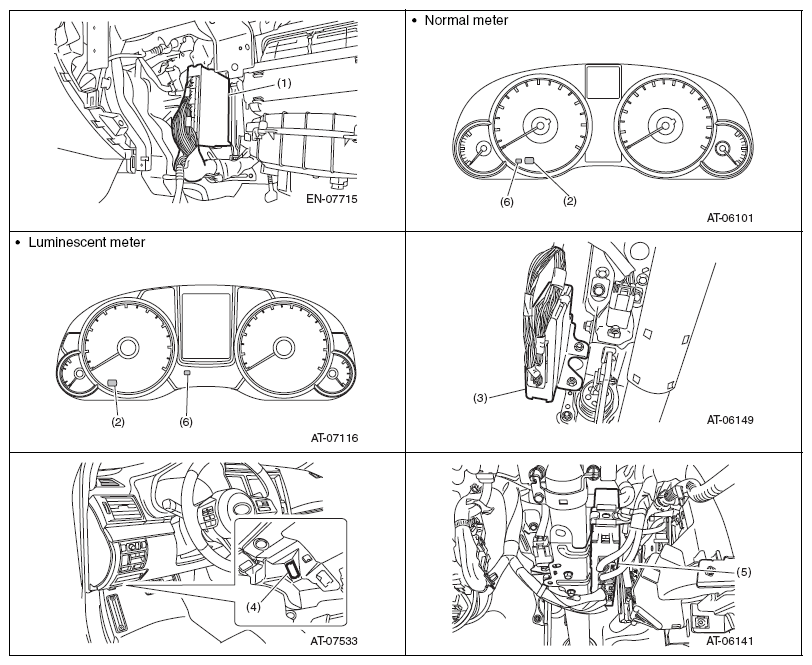

Fig 2: Control Module Electrical Component Location (2 Of 2)
G08579442Courtesy of SUBARU OF AMERICA, INC.
