DTC P0973 Primary Solenoid System A Circuit (Low): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

CVT Control System. See appropriate SYSTEM WIRING DIAGRAM article.

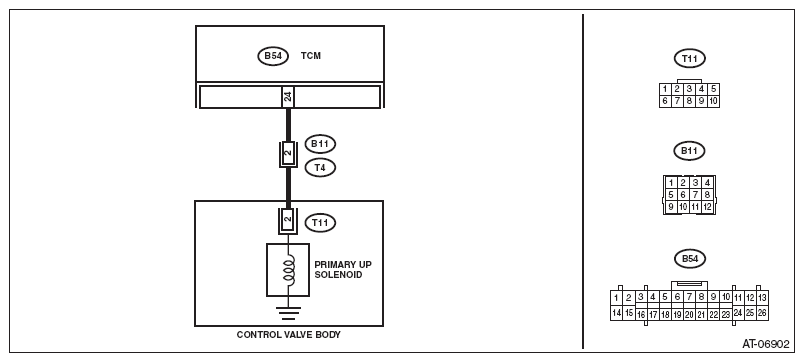

Fig 1: CVT Control System - Wiring Diagram (Primary Solenoid System)

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK HARNESS. Turn the ignition switch to OFF. Disconnect the TCM and transmission connectors. Measure the resistance between TCM connector and chassis ground. Connector & terminal (B54) No. 24 - Chassis ground:	Is the resistance 1 MΩ or more?	Go to step 2 .	Repair the short circuit of harness.
2 CHECK PRIMARY UP SOLENOID. Measure the resistance between transmission connector and transmission body. Connector & terminal (T4) No. 2 - Transmission body:	Is the resistance approx. 13 Ω? (when engine cold)	Check for poor contact of the connector, and repair the defective part.	Go to step 3 .
3 CHECK HARNESS INSIDE TRANSMISSION. CAUTION: Start work after ATF cools down. Remove the transmission valve cover. Check for the harness pinch, damage.	Is the harness normal?	Go to step 4 .	Replace the transmission harness.
4 CHECK HARNESS INSIDE TRANSMISSION. Disconnect the control valve body connector. Measure the resistance between transmission connector and transmission body. Connector & terminal (T4) No. 2 - Transmission body:	Is the resistance 1 MΩ or more?	Replace the control valve body. Refer to CONTROL VALVE BODY .	Replace the transmission harness.
