Turbo Model

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the collector cover.
Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the collector cover bracket.

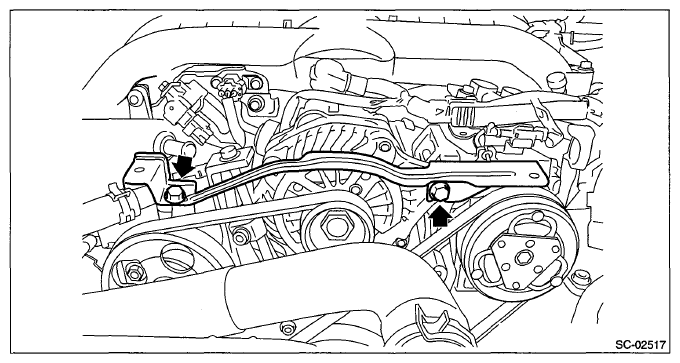

Fig 2: Removing Collector Cover Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector (A) and terminal (B) from generator.

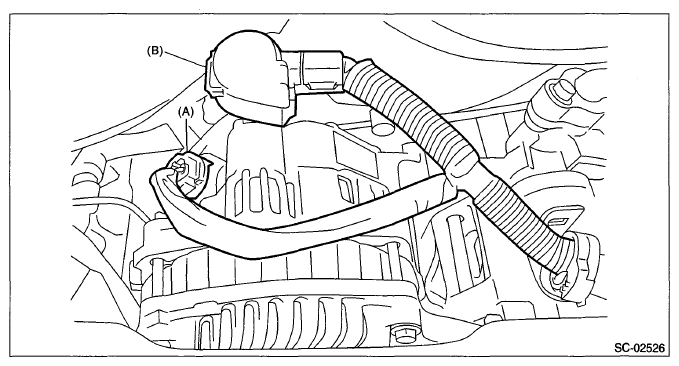

Fig 3: Identifying Generator Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the front side belts. < Refer to FRONT SIDE BELT , REMOVAL, V-belt. >
Remove the generator from the bracket.

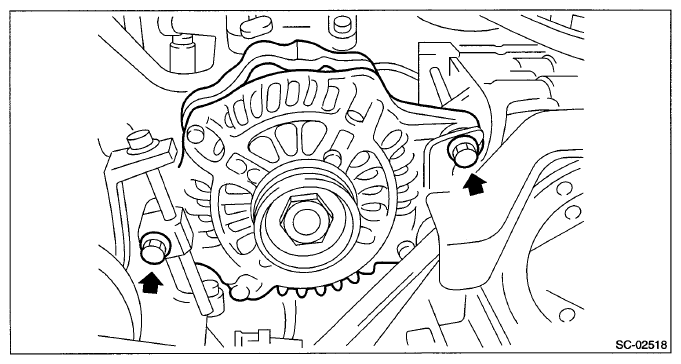

Fig 4: Locating Generator Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
