Special Tool
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
1B022XU0 |
SUBARU SELECT MONITOR III KIT |
Used for troubleshooting the electrical system. |
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
98299AG040 |
TEST HARNESS Y |
Used for troubleshooting seat belt buckle switch. |
Courtesy of SUBARU OF AMERICA, INC.
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|

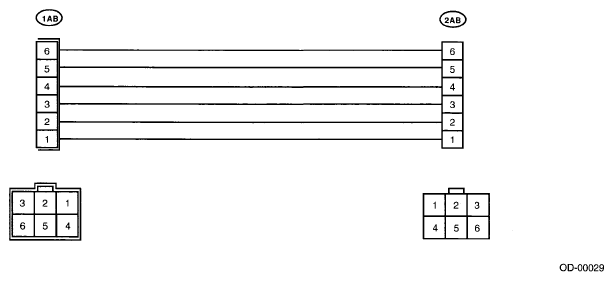

98299XA000 |
TEST HARNESS AB |
Used when measuring voltage and resistance of occupant detection system. |
Courtesy of SUBARU OF AMERICA, INC.
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
98299XA030 |
TEST HARNESS AE |
TEST HARNESS Y adapter harness
Used for troubleshooting seat belt buckle switch. |
Courtesy of SUBARU OF AMERICA, INC.
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
98299XA010 |
TEST HARNESS AC |
Used for troubleshooting seat belt tension sensor. |
Courtesy of SUBARU OF AMERICA, INC.
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
98299XA020 |
TEST HARNESS AD |
Used when measuring voltage and resistance of the seat belt tension sensor. |
Courtesy of SUBARU OF AMERICA, INC.
