Illumination Control Of Various Indicators

WARNING: This page is about a different car, the 2013 Subaru Forester, 2012 Subaru Forester, 2011 Subaru Forester, and 2010 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Illuminations of the various indicators on the combination meter are controlled in accordance with the shift pattern selection as shown below.

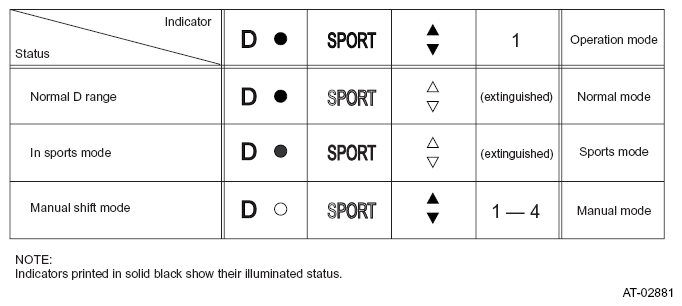

Fig 1: Illumination Control Of Various Indicators
G08260941Courtesy of SUBARU OF AMERICA, INC.
