Schematic Diagram

WARNING: This page is about a different car, the 2013 Subaru Forester, 2012 Subaru Forester, 2011 Subaru Forester, and 2010 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

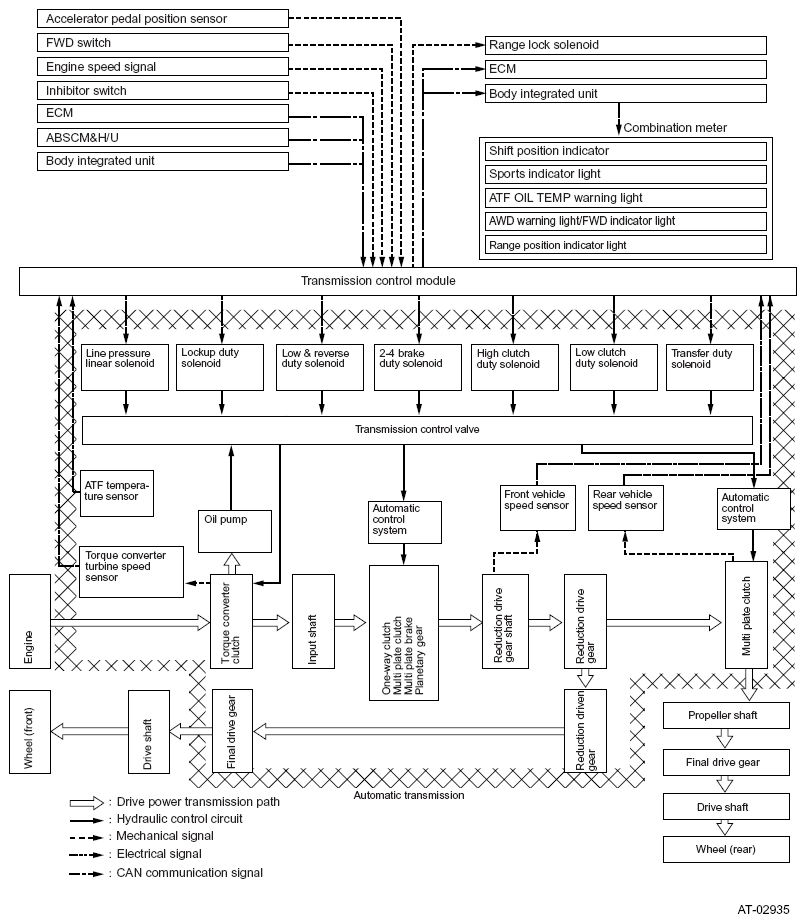

Fig 1: Transmission Control Module - Schematic
G08260937Courtesy of SUBARU OF AMERICA, INC.
