Section 16 (Automatic Transaxle - Diagnostics): Electrical Component Location: Location: Sensor

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

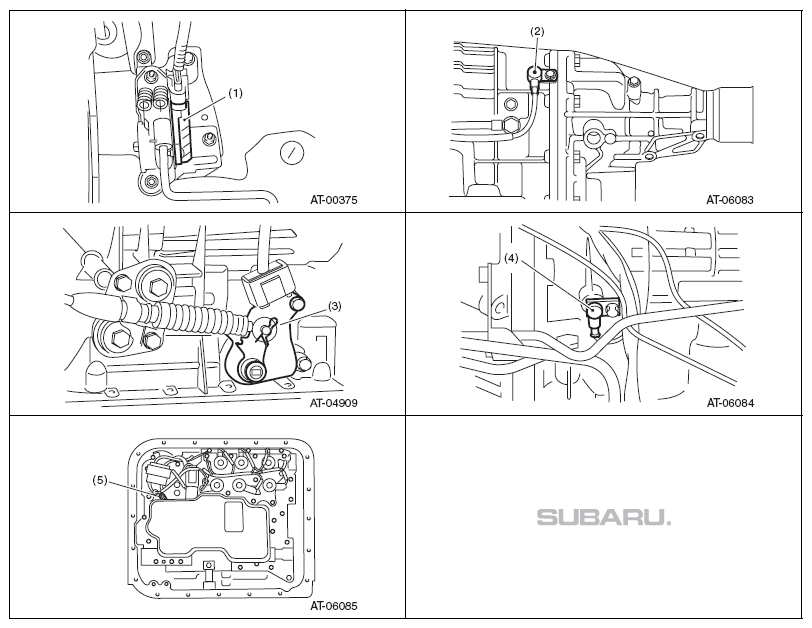

Fig 1: Sensor Electrical Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Sensor Electrical Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
