Radiator And Radiator Fan

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

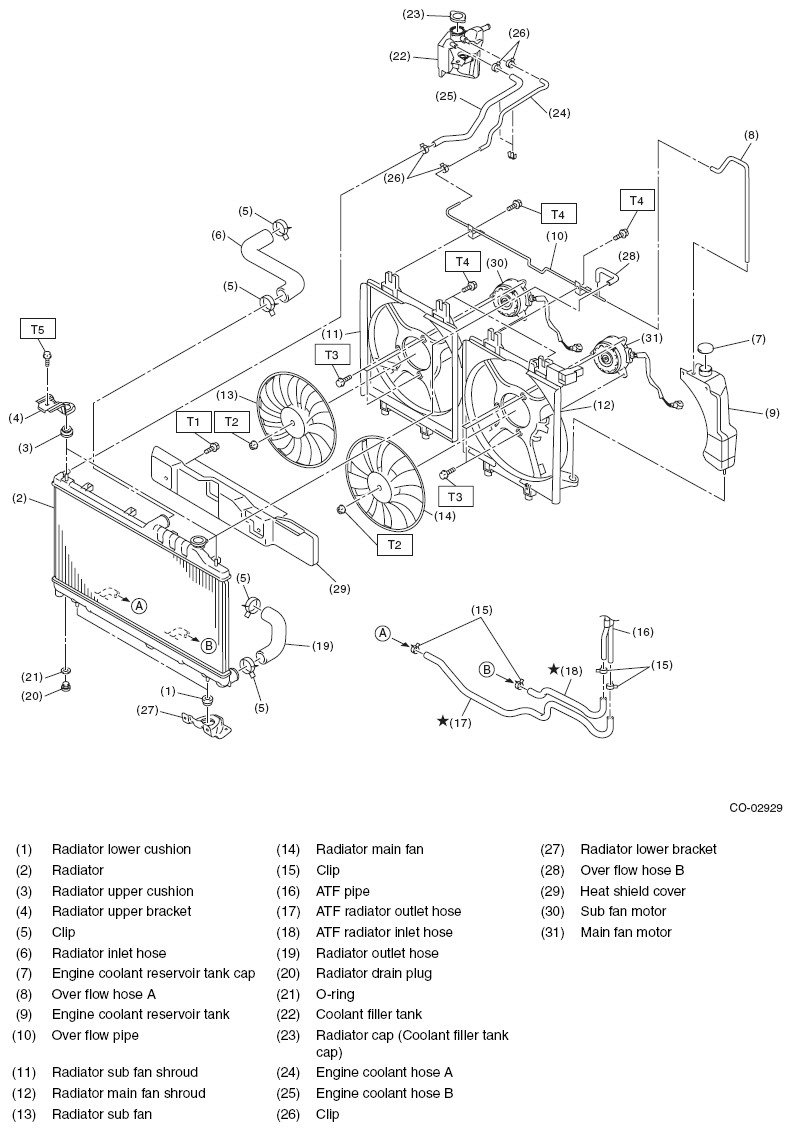

Fig 1: Radiator And Radiator Fan Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3 (0.3, 2.2)

T2: 3.4 (0.3, 2.5)

T3: 4.41 (0.45, 3.25)

T4: 7.5 (0.8, 5.5)

T5: 12 (1.2, 8.9)
