DTC P2009 Intake Manifold Runner Control Circuit Low (Bank 1): Wiring Diagram

Engine electrical system, 2.5 L model (without push button start). See appropriate SYSTEM WIRING DIAGRAM article.
Engine electrical system, 2.5 L model (with push button start). See appropriate SYSTEM WIRING DIAGRAM article.

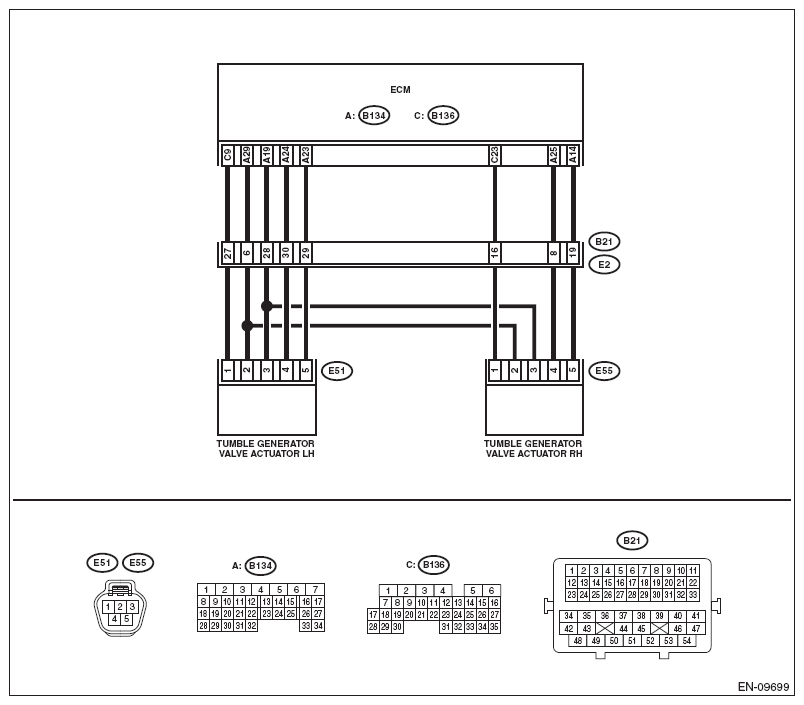

Fig 1: Intake Manifold Runner Control - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK HARNESS BETWEEN ECM AND TUMBLE GENERATOR VALVE ACTUATOR RH CONNECTOR. Turn the ignition switch to OFF. Disconnect the connector from ECM. Measure the voltage between ECM and chassis ground. Connector & terminal (B134) No. 25 (+) - Chassis ground (-): (B134) No. 14 (+) - Chassis ground (-):	Is the voltage 5 V or more?	Repair the short circuit to power in harness between ECM and tumble generator valve actuator RH connector.	Replace the tumble generator valve actuator RH. Refer to TUMBLE GENERATOR VALVE ACTUATOR .
