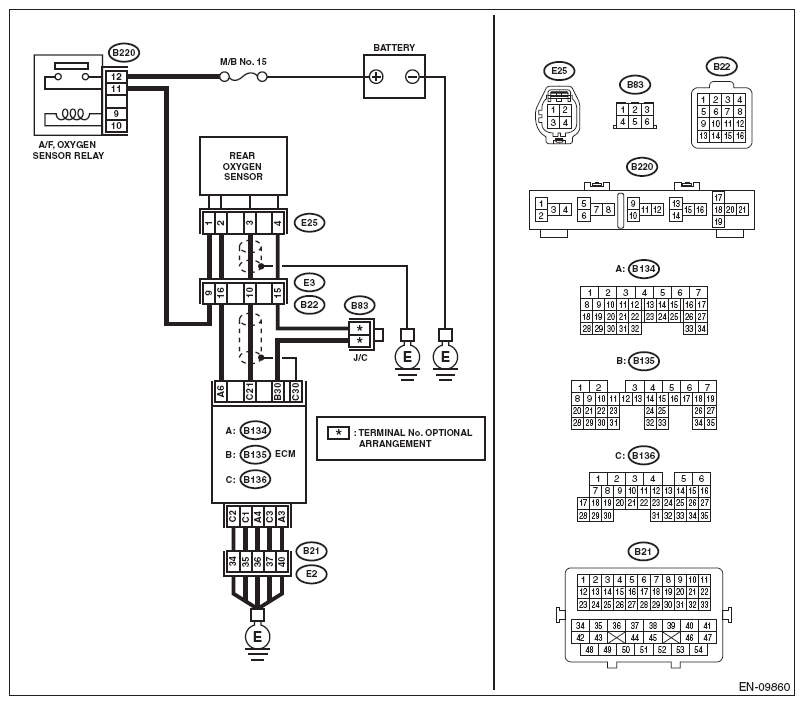

DTC P013A O2 Sensor Slow Response - Rich To Lean (Bank 1 Sensor 2): Wiring Diagram
- Engine electrical system, 2.5 L model (without push button start). See appropriate SYSTEM WIRING DIAGRAM article.
- Engine electrical system, 2.5 L model (with push button start). See appropriate SYSTEM WIRING DIAGRAM article.
DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
1 CHECK HARNESS BETWEEN ECM AND REAR OXYGEN SENSOR CONNECTOR.
|
Is the resistance less than 1 Ω? | Go to step 2 . | Repair the harness and connector.
NOTE:
In this case, repair the following item:
|
| 2 CHECK HARNESS BETWEEN ECM AND REAR OXYGEN SENSOR CONNECTOR. Measure the resistance between rear oxygen sensor connector and chassis ground. Connector & terminal (E25) No. 3 - Chassis ground: |
Is the resistance 1 MΩ or more? | Go to step 3 . | Repair the ground short circuit of harness between ECM and rear oxygen sensor connector. |
| 3 CHECK REAR OXYGEN SENSOR. Measure the resistance between rear oxygen sensor terminals. Terminals No. 3 - No. 4 |
Is the resistance less than 1 Ω? | Replace the rear oxygen sensor. Refer to REAR OXYGEN SENSOR . | Even if DTC is detected, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.
NOTE:
In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
|
