Valve ASSY

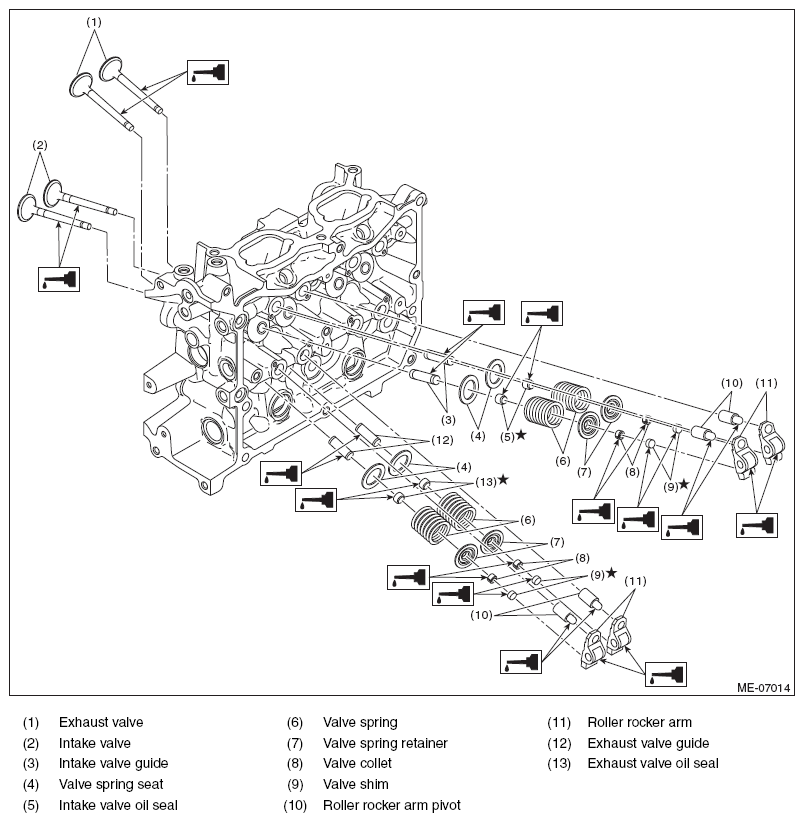

Fig 1: Exploded View Of Valve Assembly And Related Components
G08579933Courtesy of SUBARU OF AMERICA, INC.
