Chain Cover: Assembly

  1. Install the actuator cover to chain cover.
    NOTE:
    • Use new O-rings.
    • Apply a coat of engine oil to the O-rings.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

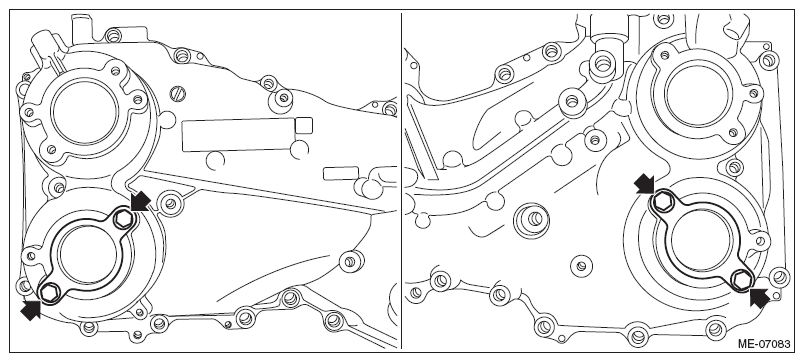

    Fig 1: Locating Actuator Cover Mounting Bolts
    G08580099Courtesy of SUBARU OF AMERICA, INC.
  2. Install the camshaft position sensor. Refer to INSTALLATION .
  3. Install the oil control solenoid. Refer to INSTALLATION .
  4. Install the engine oil temperature sensor. Refer to INSTALLATION .
  5. Install the oil pressure switch. Refer to INSTALLATION .
  6. Install the engine oil filter and the oil pump union. Refer to INSTALLATION .
  7. Install the oil filler cap.

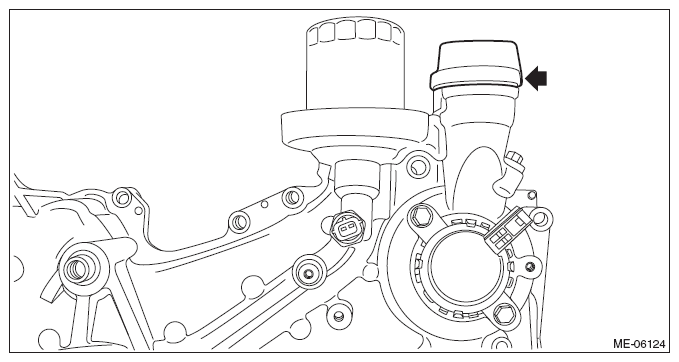

    Fig 2: Locating Oil Filler Cap
    G08580098Courtesy of SUBARU OF AMERICA, INC.
