Oil Level Switch: Wiring Diagram

Engine electrical system (2.5 L Model (Without Push Button Start). See appropriate SYSTEM WIRING DIAGRAM article.

Engine electrical system (2.5 L Model (With Push Button Start). See appropriate SYSTEM WIRING DIAGRAM article.

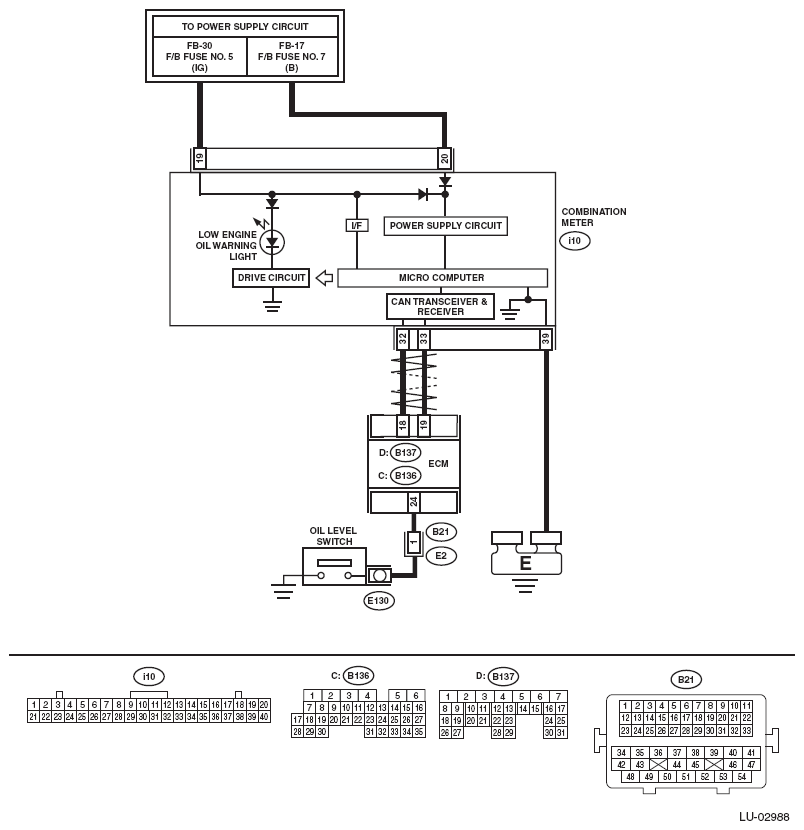

Fig 1: Oil Level Switch - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
