Oil Pan And Strainer

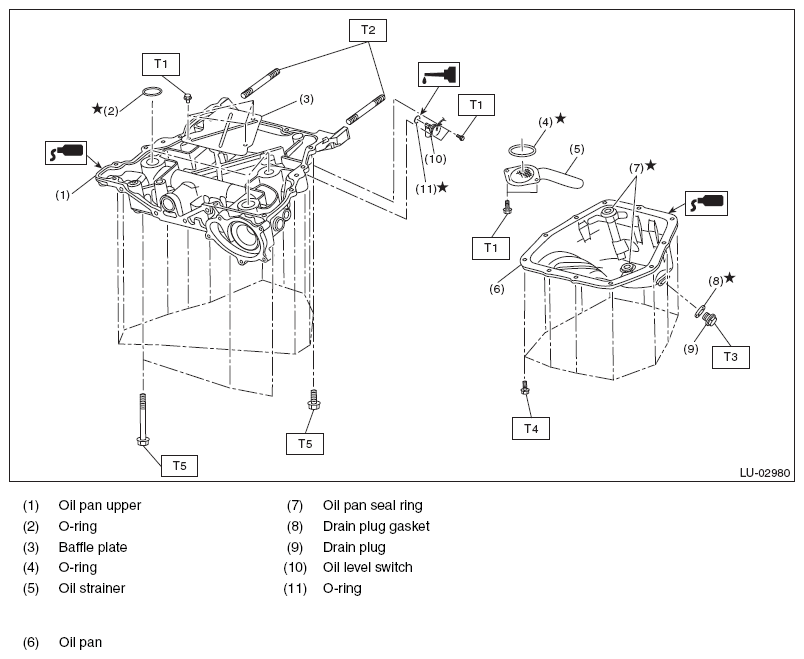

Fig 1: Oil Pan And Strainer Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 10 (1.0, 7.4)

T3: 41.7 (4.3, 30.8)

T4: Refer to  OIL PAN  .

T5: Refer to  OIL PAN UPPER  .
