EGR Pipe: Installation

Temporarily install the EGR pipe to the intake manifold and water pipe assembly, and tighten the EGR pipe in numerical order as shown in the figure.
NOTE: Use a new gasket.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

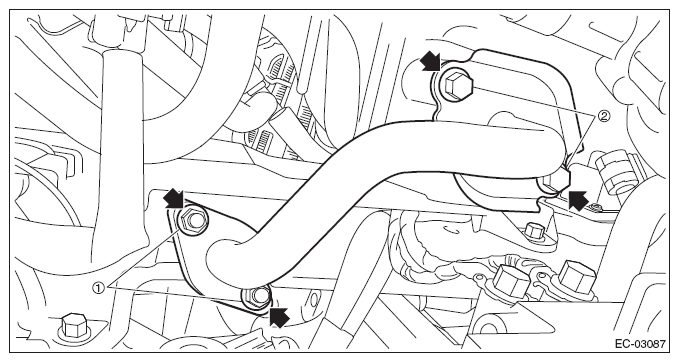

Fig 1: Identifying EGR Pipe To Intake Manifold Mounting Bolts And Nuts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the throttle body to the intake manifold.
Tightening torque:

8.0 N.m (0.8 kgf-m, 5.9 ft-lb)

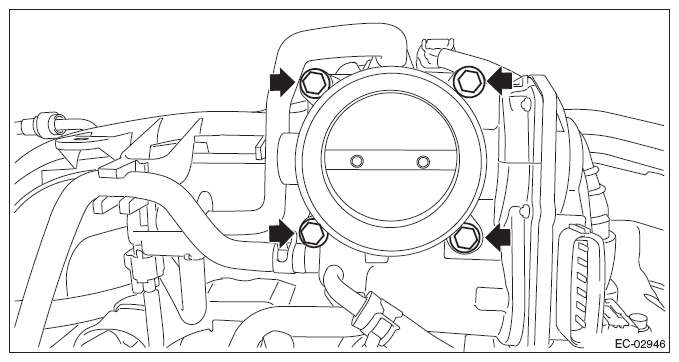

Fig 2: Locating Throttle Body Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the throttle body.

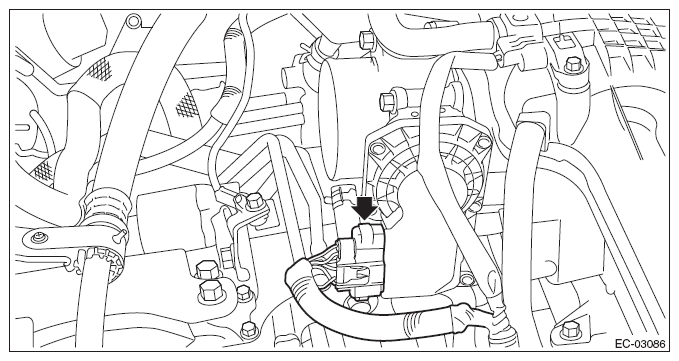

Fig 3: Locating Throttle Body Connector
Courtesy of SUBARU OF AMERICA, INC.
Temporarily install the EGR pipe to EGR pipe adapter.

Fig 4: Locating EGR Pipe Mounting Nut
Courtesy of SUBARU OF AMERICA, INC.
Temporarily install the EGR pipe assembly to the water pipe assembly and cylinder head assembly, and tighten the EGR pipe assembly in numerical order as shown in the figure.
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 51 N.m (5.2 kgf-m, 37.6 ft-lb)

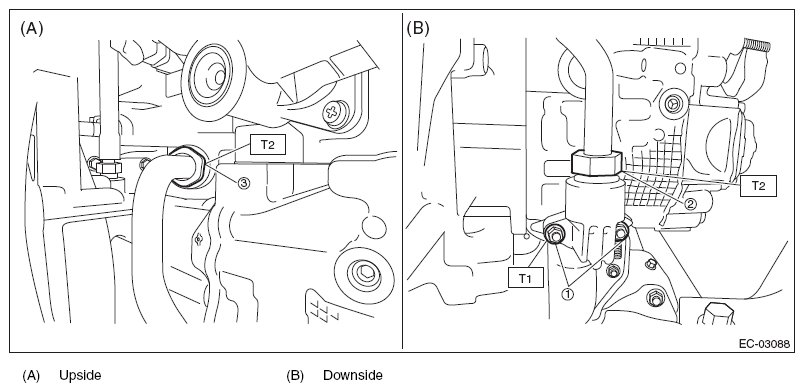

Fig 5: Identifying EGR Pipe Assembly Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Refer to INSTALLATION .
Connect the battery ground terminal.

Fig 6: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
