Horn System: Horn: Removal

Disconnect the ground cable from battery.
Remove the Lo pitch side horn.
1. Remove the clips and remove the air intake duct.

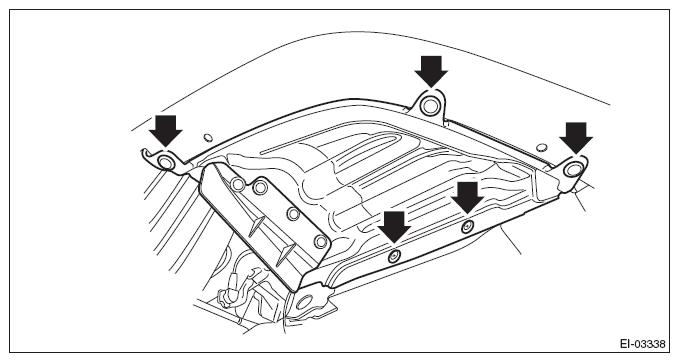

  Fig 1: Locating Air Intake Duct Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the clips and remove the grille bracket.

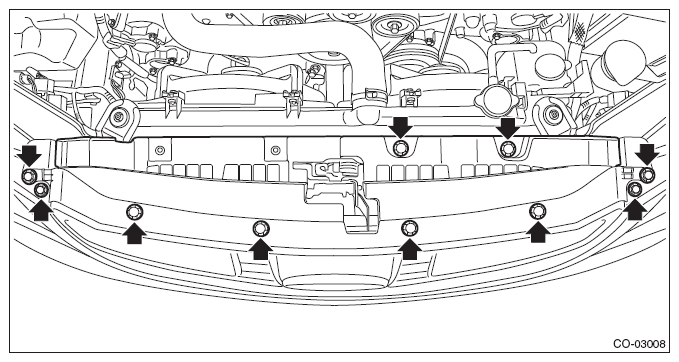

  Fig 2: Locating Grille Bracket Clips
  Courtesy of SUBARU OF AMERICA, INC.
3. Disconnect the connector.
4. Remove the horn bracket mounting bolt, and remove the Lo pitch side horn.

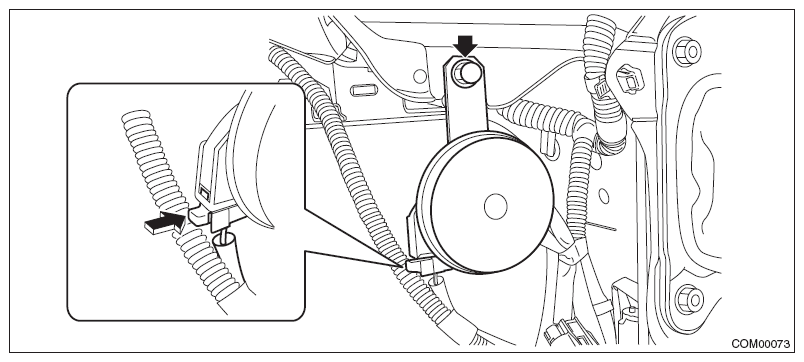

  Fig 3: Locating Horn Bracket Mounting Bolt
  Courtesy of SUBARU OF AMERICA, INC.
Remove the Hi pitch side horn.
1. Remove the clips and turn over the front mud guard RH.

  Fig 4: Locating Front Mud Guard Clips (RH)
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the connector.
3. Remove the horn bracket mounting bolt, and remove the Hi pitch side horn.

  Fig 5: Locating Horn Bracket Mounting Bolt
  Courtesy of SUBARU OF AMERICA, INC.
