Check Roll Connector

  1. Remove the roll connector. Refer to REMOVAL .
  2. Check the resistance between roll connector terminals.

    Preparation tool:

    Circuit tester

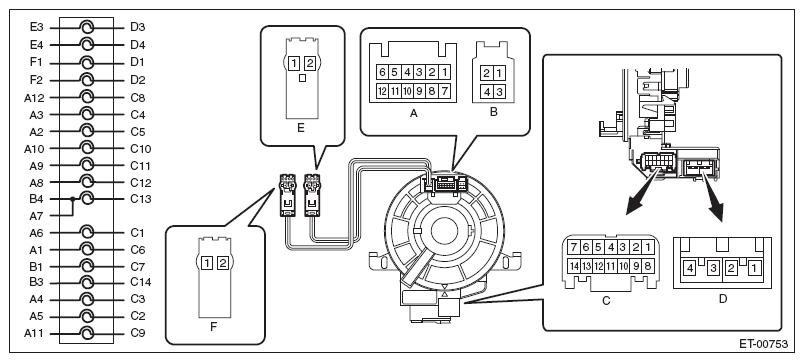

    Fig 1: Identifying Roll Connector Terminals
    G08584614Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Standard
    A1 - C6 Always Less than 1 Ω
  3. Replace the roll connector if the inspection result is not within the standard value.
