Starting System & Charging System (H4DO): Starter: Installation

Install in the reverse order of removal.

NOTE: For the MT model, a bolt is used to the location (A).

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

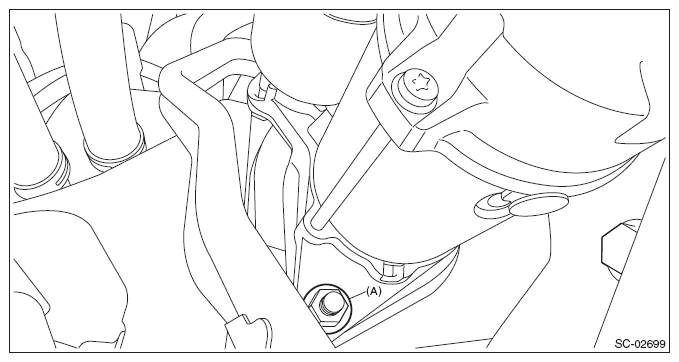

Fig 1: Identifying Starter Lower Nut (MT Model)

Courtesy of SUBARU OF AMERICA, INC.

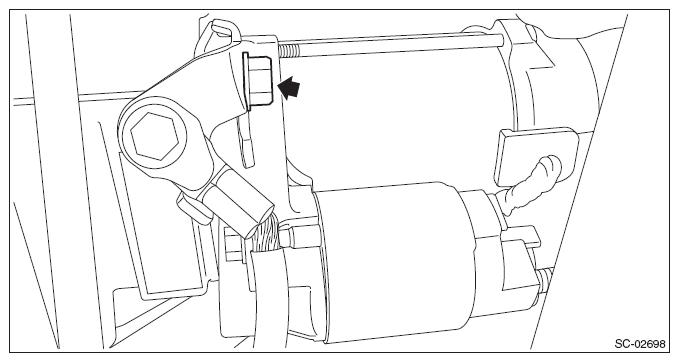

Fig 2: Locating Starter Upper Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

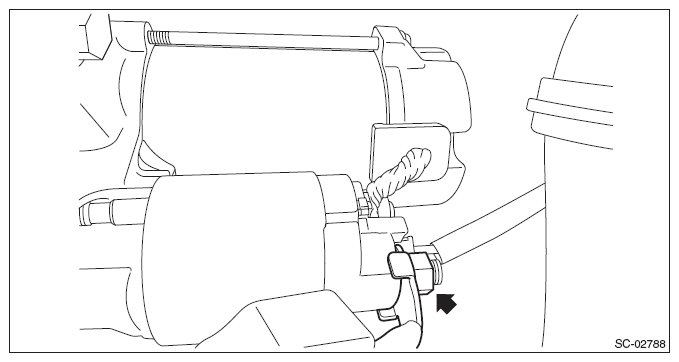

Fig 3: Locating Starter Nut

Courtesy of SUBARU OF AMERICA, INC.
