Starting System & Charging System (H4DO): Starter: Disassembly

Remove the nut which holds terminal M (A) of the magnet switch assembly, then disconnect the harness from the terminal.

Fig 1: Identifying Terminal M Holding Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts fastening the magnet switch assembly to the starter housing, then remove the magnet switch assembly.

Fig 2: Locating Magnet Switch Assembly To Starter Housing Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the starter seal.

Fig 3: Identifying Starter Seal
Courtesy of SUBARU OF AMERICA, INC.
Remove the through bolts on both sides, and remove the starter housing.

Fig 4: Locating Starter Housing Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Starter Housing
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift lever.

Fig 6: Removing/Installing Starter Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the overrunning clutch assembly from the yoke.

Fig 7: Removing Overrunning Clutch Assembly From Yoke
Courtesy of SUBARU OF AMERICA, INC.
Remove the starter plate.

Fig 8: Identifying Starter Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the planetary gear (A) and washer (B) from internal gear.

Fig 9: Identifying Planetary Gear And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws, and remove the starter cover from the brush holder assembly.
NOTE: Separate the starter cover by pressing the brush holder assembly using the screws so that the assembly stays onto the armature side.

Fig 10: Identifying Starter Cover
Courtesy of SUBARU OF AMERICA, INC.

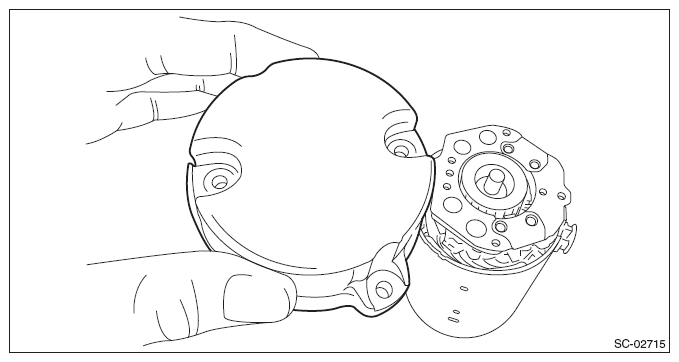

Fig 11: Removing Starter Cover From Brush Holder Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the brush holder assembly from the armature.
NOTE: Spread the brush with your fingers, being careful not to damage the brush.

Fig 12: Removing/Installing Brush Holder Assembly From Armature
Courtesy of SUBARU OF AMERICA, INC.
Remove the armature from the yoke.

Fig 13: Removing/Installing Armature Yoke
Courtesy of SUBARU OF AMERICA, INC.
