Starting System & Charging System (H4DO): Starter: Assembly

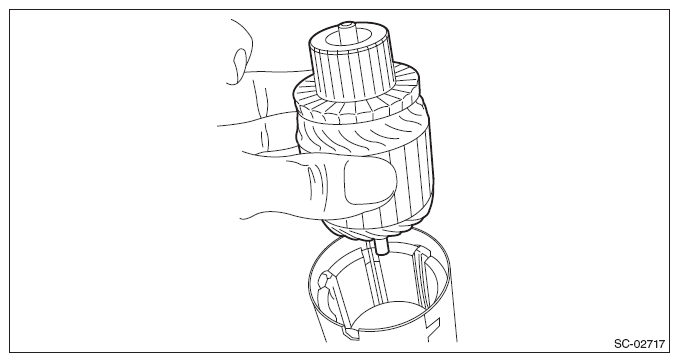

Install the armature to the yoke.

Fig 1: Removing/Installing Armature Yoke
Courtesy of SUBARU OF AMERICA, INC.

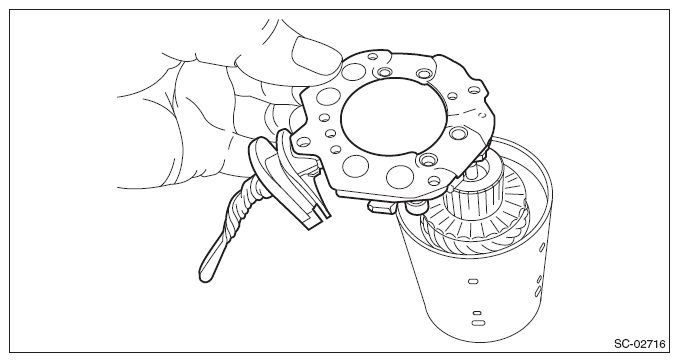

Install the brush holder assembly to the armature.
NOTE: Spread the brush with your fingers, being careful not to damage the brush.

Fig 2: Removing/Installing Brush Holder Assembly From Armature
Courtesy of SUBARU OF AMERICA, INC.
Install the starter cover, and secure it to the brush holder assembly with the screws.

Fig 3: Identifying Starter Cover
Courtesy of SUBARU OF AMERICA, INC.

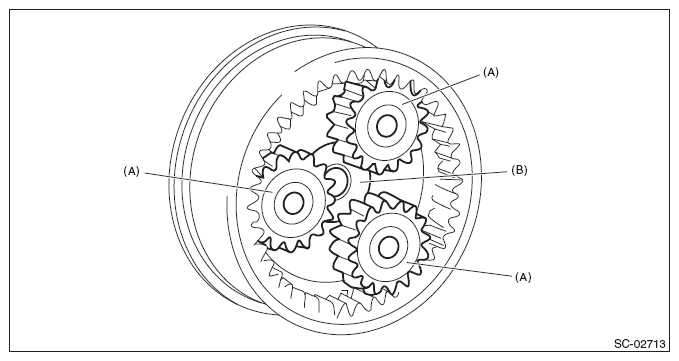

Assemble the planetary gear (A) and washer (B) to the internal gear.
1. Apply grease to the planetary gear installation position.
  Grease:

  DENSO HL50
2. Install the planetary gear to the pin.
3. Apply grease to the planetary gear, internal gear, washer, and upper part of the pin.
  NOTE:
  - Apply grease so that it contacts each gear.
  - Be careful not to allow dirt to get in.
  Grease:

  DENSO HL50

  Fig 4: Identifying Planetary Gear And Washer
  Courtesy of SUBARU OF AMERICA, INC.
4. Install the starter plate.

  Fig 5: Identifying Starter Plate
  Courtesy of SUBARU OF AMERICA, INC.
Assemble the overrunning clutch assembly to the yoke.

Fig 6: Removing Overrunning Clutch Assembly From Yoke
Courtesy of SUBARU OF AMERICA, INC.

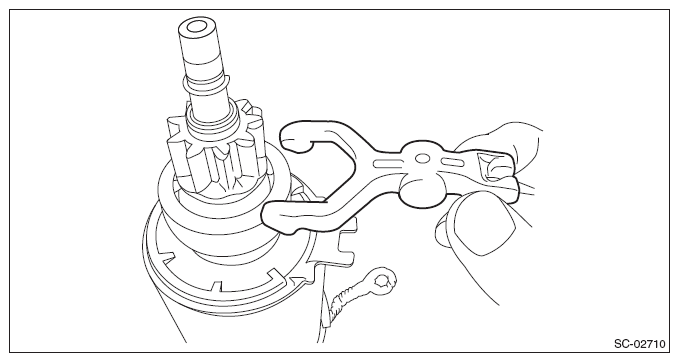

Install the shift lever.
NOTE: Apply grease to the contact portion of the shift lever.

Grease:

DENSO HL50

Fig 7: Removing/Installing Starter Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Install the starter housing, and tighten through bolts on both sides.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Fig 8: Identifying Starter Housing
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Locating Starter Housing Mounting Screws
Courtesy of SUBARU OF AMERICA, INC.

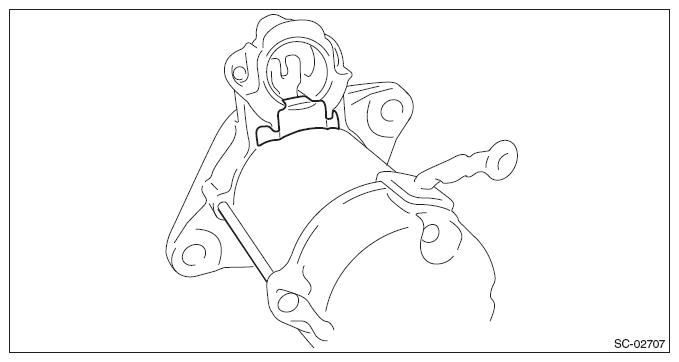

Install the starter seal.

Fig 10: Identifying Starter Seal
Courtesy of SUBARU OF AMERICA, INC.

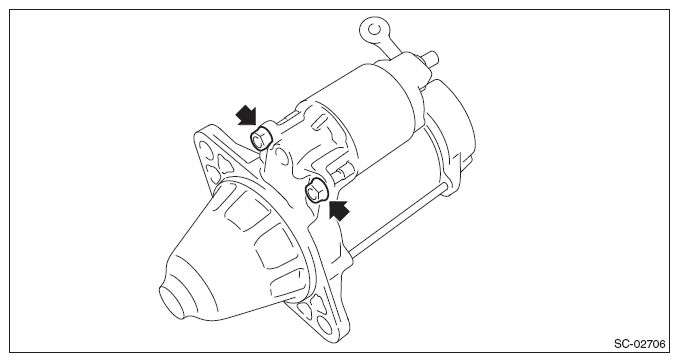

Install the magnet switch assembly to the starter housing, and tighten the nuts.
NOTE: Apply grease to the shift lever installation position.

Grease:

DENSO HL50

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 11: Locating Magnet Switch Assembly To Starter Housing Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

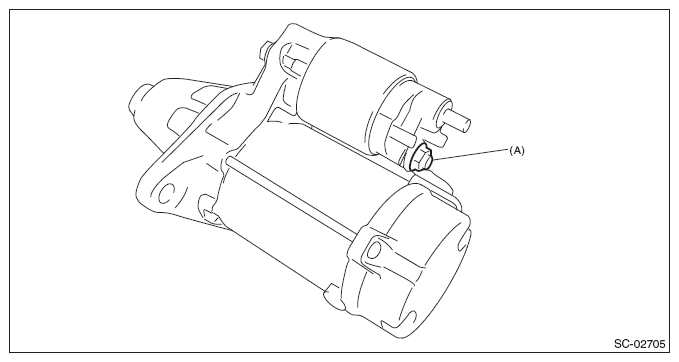

Install the harness to the terminal M (A) of the magnet switch assembly, and tighten the nut.
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 12: Identifying Terminal M Holding Nut
Courtesy of SUBARU OF AMERICA, INC.
