Starting System & Charging System (H4DO): Generator: Removal

Remove the V-belt covers.

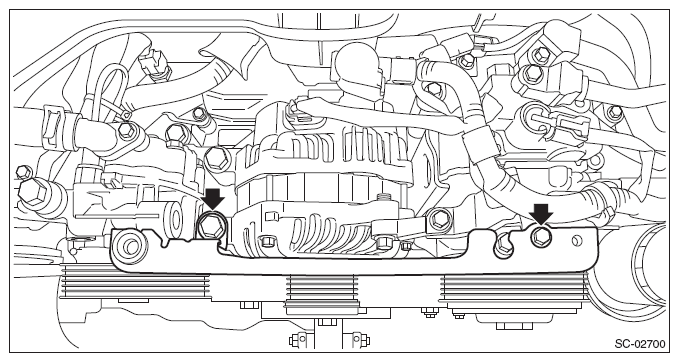

Fig 1: Locating V-Belt Cover Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground cable from battery.

Fig 2: Disconnecting/Connecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belts. < Refer to REMOVAL , V-belt. >
Remove the V-belt cover bracket.

Fig 3: Locating V-Belt Cover Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) and terminal (B) from the generator.

Fig 4: Identifying Generator Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the idler pulley from the chain cover.

Fig 5: Locating Idler Pulley
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator from the bracket.

Fig 6: Locating Generator Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator bracket from the generator.

Fig 7: Locating Generator To Generator Bracket Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
