Stator Coil

Continuity test
Inspect the continuity between the stator coil terminals. If continuity is not as shown in the table, replace the stator coil.

Fig 1: Identifying Stator Coil Continuity Table
Courtesy of SUBARU OF AMERICA, INC.

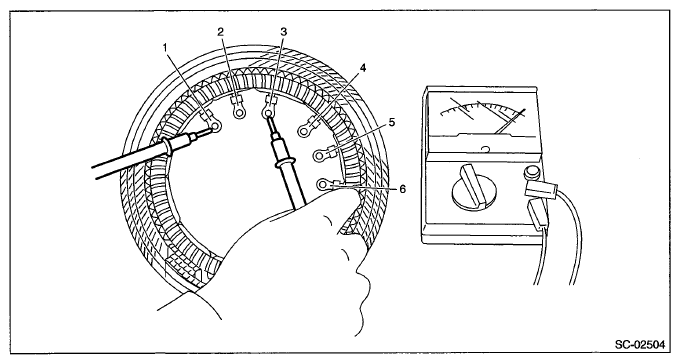

Fig 2: Inspecting Continuity Between Stator Coil Terminals
Courtesy of SUBARU OF AMERICA, INC.
Insulation test
Inspect the continuity between the stator coil stator core and lead wire terminals. If there is continuity, replace the stator coil because the stator coil is grounded.

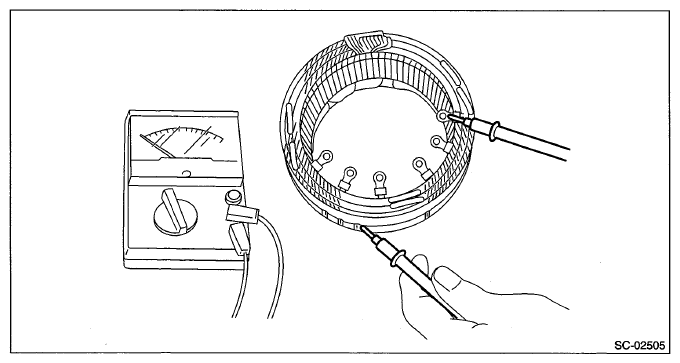

Fig 3: Inspecting Continuity Between Stator Coil Stator Core And Lead Wire Terminals
Courtesy of SUBARU OF AMERICA, INC.
