Starting System & Charging System (H4DO): Battery: Removal

  1. Disconnect the positive (+) terminal after disconnecting the negative (-) terminal of battery.
  2. Remove the battery cable holder from the battery rod.
  3. Remove the flange nut from battery rod and remove battery holder.

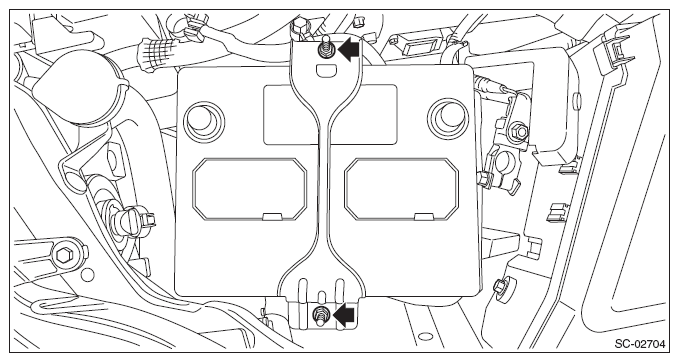

    Fig 1: Locating Battery Rod Flange Nut
    G08580619Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the battery.
