Home >> Subaru >> 2013 >> Outback Base, Standard Trans >> Repair and Diagnosis >> Brakes >> Parking Brake System >> Parking Brake System (Diagnostics) >> Control Module I/O Signal >> Wiring Diagram

Control Module I/O Signal: Wiring Diagram

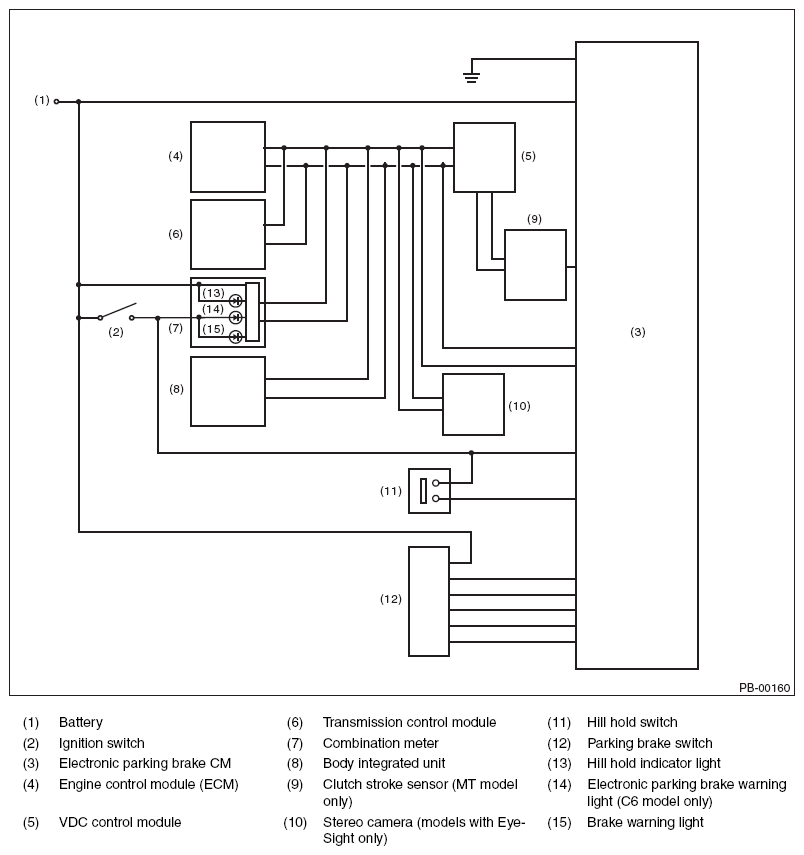

Fig 1: Parking Brake Control Module I/O Signal Wiring Diagram

G08583626

Courtesy of SUBARU OF AMERICA, INC.
