Electrical Specification
NOTE:

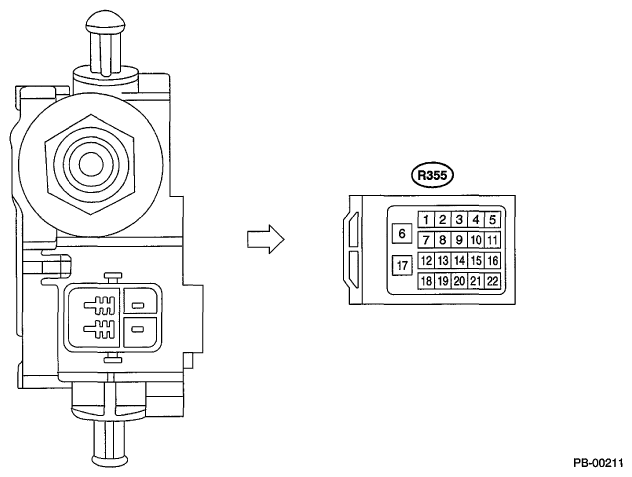

The terminal numbers of the electronic parking brake control module connectors are as indicated in the figure.
| Content | Terminal No. (+) - (-) | Input/Output signal |
|---|---|---|
| Measured value and measuring conditions | ||
| Battery power supply | 17 - 6 | Always 10 - 15 V |
| IGN power supply | 18 - 6 | 10 - 15 V when the ignition switch is ON. |
| Parking brake switch | 13 | Pulse signal |
| Parking brake switch | 14 | Pulse signal |
| Parking brake switch | 20 | Pulse signal |
| Parking brake switch | 19 | Pulse signal |
| Hill hold switch | 2 - 6 | When hill hold switch is operated, 10 - 15 V |
| Parking brake switch indicator light | 7 - 6 | When the light is on: 0 V, when the light is off: 10 - 15 V |
| Clutch stroke sensor (MT model only) | 12 | Pulse signal |
| CAN-H | 9 | Serial communication |
| CAN-L | 3 | Serial communication |
| Ground | 6 | - |
