Sunroof Assembly: Installation

CAUTION: Be careful not to snag the harness.

Install each part in the reverse order of removal.

Tightening torque:

< Refer to COMPONENT , General Description. >

NOTE:

Length A:

15 mm (0.59 in) or more

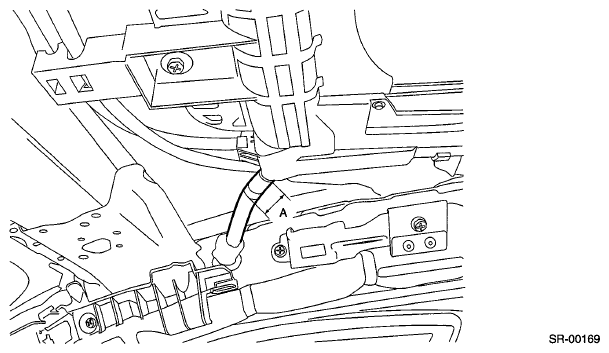

Fig 1: Identifying Drain Tube Inserting Length Into Drain Pipe

Courtesy of SUBARU OF AMERICA, INC.
