Check Memory Switch (With Memory Function)

Measure resistance between terminals while operating each switch.

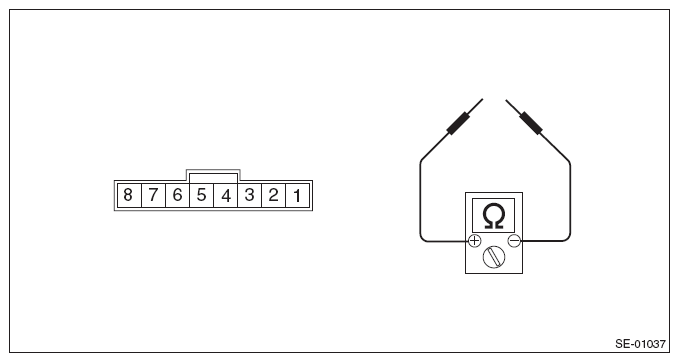

Fig 1: Measuring Resistance Between Memory Switch Terminals
G08584896
Switch position Terminal No. Standard
Memory 1 2 and 1 Less than 10 W
Memory 2 3 and 1 Less than 10 W
Set 8 and 1 Less than 10 W

Replace the memory switch if the inspection result is not within the standard value.
