ID Code Box: Removal

  1. Remove the heater and cooling unit. Refer to REMOVAL .
  2. Remove the ID code box.
    1. Disconnect the connector.
    2. Remove the nut and remove the ID code box.

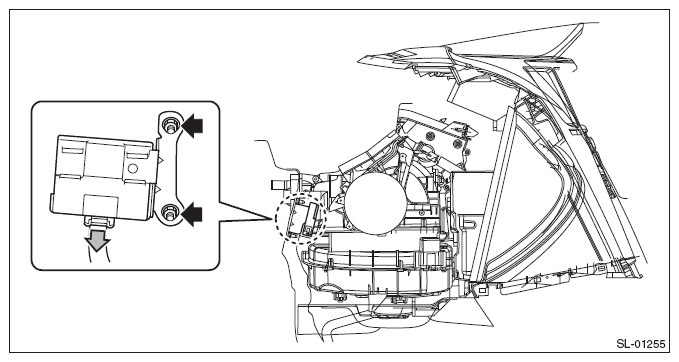

      Fig 1: Disconnecting ID Code Box Connector
      G08585036Courtesy of SUBARU OF AMERICA, INC.
