General Description
>>
Components With Torque Specifications
>>
Washer Tank
Washer Tank

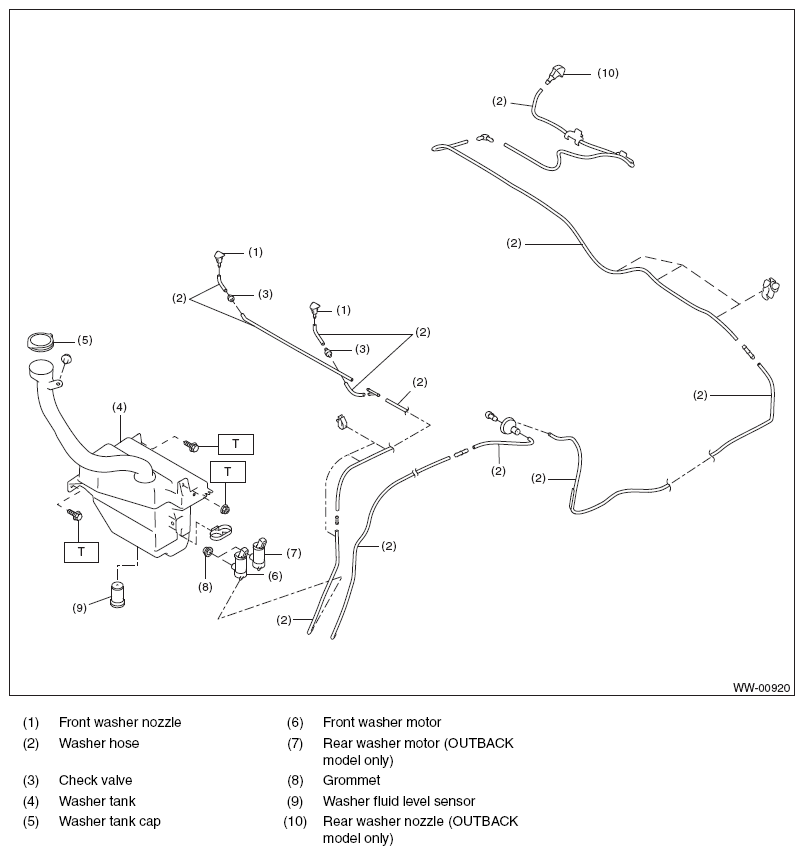

Fig 1: Washer Tank Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 6 (0.61, 4.4)
Courtesy of SUBARU OF AMERICA, INC.
