Satellite Switch

  1. Measure the resistance between satellite switch connector terminals during switch operation.
    • TYPE 1

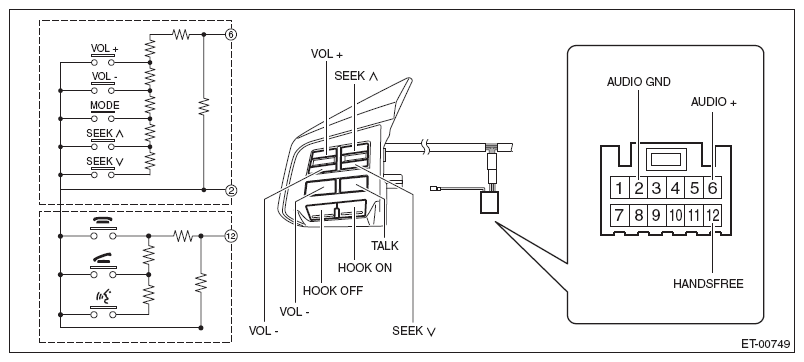

      Fig 1: Satellite Switch - Circuit Diagram (Type 1)
      G08584610Courtesy of SUBARU OF AMERICA, INC.
      Switch Switch operation Terminal No. Standard
      VOL (+)
      VOL (-)
      MODE
      SEEK (UP )
      SEEK (DOWN )
      All OFF 6 and 2 Approx. 4.7 kΩ
      VOL (+) ON 6 and 2 Approx. 90 Ω
      VOL (-) ON 6 and 2 Approx. 200 Ω
      MODE ON 6 and 2 Approx. 360 Ω
      Preset CH UP/SEEK (UP ) ON 6 and 2 Approx. 690 Ω
      Preset CH DOWN/SEEK (DOWN ) ON 6 and 2 Approx. 1.5 kΩ
      Switch Switch operation Terminal No. Standard
      HOOK ON
      HOOK OFF
      TALK
      All OFF 12 and 2 Approx. 100 kΩ
      HOOK ON ON 12 and 2 Approx. 330 Ω
      HOOK OFF ON 12 and 2 Approx. 1.0 kΩ
      TALK ON 12 and 2 Approx. 3.2 kΩ

      Replace the satellite switch if the inspection result is not within the standard value.

    • TYPE 2

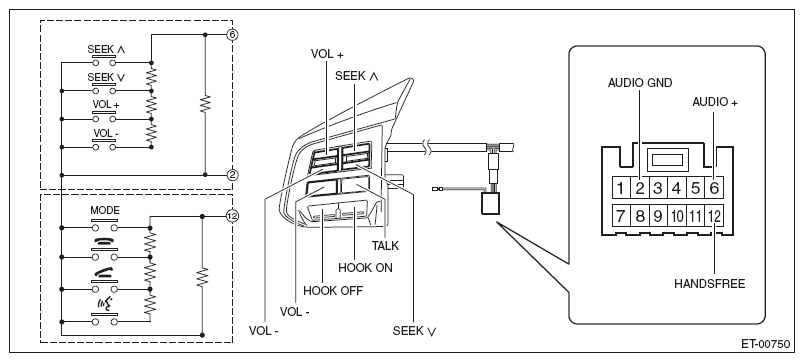

      Fig 2: Satellite Switch - Circuit Diagram (Type 2)
      G08584611Courtesy of SUBARU OF AMERICA, INC.
      Switch Switch operation Terminal No. Standard
      SEEK (UP )
      SEEK (DOWN )
      VOL (+)
      VOL (-)
      All OFF 6 and 2 Approx. 100 kΩ
      Preset CH UP/SEEK (UP ) ON 6 and 2 Approx. less than 1 Ω
      Preset CH DOWN/SEEK (DOWN ) ON 6 and 2 Approx. 330 Ω
      VOL (+) ON 6 and 2 Approx. 1.0 kΩ
      VOL (-) ON 6 and 2 Approx. 3.2 kΩ
      Switch Switch operation Terminal No. Standard
      MODE
      HOOK ON
      HOOK OFF
      TALK
      All OFF 12 and 2 Approx. 100 kΩ
      MODE ON 12 and 2 Approx. less than 1 Ω
      HOOK ON ON 12 and 2 Approx. 330 Ω
      HOOK OFF ON 12 and 2 Approx. 1.0 kΩ
      TALK ON 12 and 2 Approx. 3.2 kΩ

      Replace the satellite switch if the inspection result is not within the standard value.

    • TYPE 3

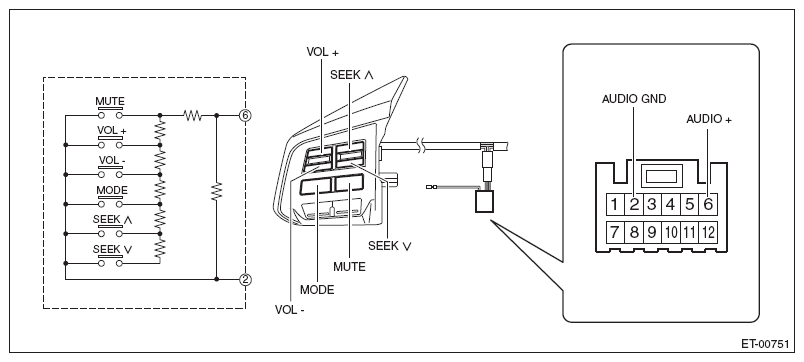

      Fig 3: Satellite Switch - Circuit Diagram (Type 3)
      G08584612Courtesy of SUBARU OF AMERICA, INC.
      Switch Switch operation Terminal No. Standard
      Mute
      VOL (+)
      VOL (-)
      MODE
      SEEK (UP )
      SEEK (DOWN )
      All OFF 6 and 2 Approx. 4.7 kΩ
      Mute ON 6 and 2 Approx. 22 Ω
      VOL (+) ON 6 and 2 Approx. 90 Ω
      VOL (-) ON 6 and 2 Approx. 200 Ω
      MODE ON 6 and 2 Approx. 360 Ω
      Preset CH UP/SEEK (UP ) ON 6 and 2 Approx. 690 Ω
      Preset CH DOWN/SEEK (DOWN ) ON 6 and 2 Approx. 1.5 kΩ

      Replace the satellite switch if the inspection result is not within the standard value.

  2. Check the satellite switch illumination.
    1. Connect the battery (12 V) to the satellite switch connector.
      Fig 4: Identifying Satellite Switch Connector Terminals
      G08584613Courtesy of SUBARU OF AMERICA, INC.
    2. If illumination does not turn on, replace the satellite switch assembly.
