Outback Model

  1. Disconnect the ground cable from battery.
  2. Remove the rear gate trim. Refer to REMOVAL .
  3. Remove the noise suppressor.
    1. Disconnect harness connector from noise suppressor.
    2. Remove the harness clamps and bolts and detach the noise suppressor.

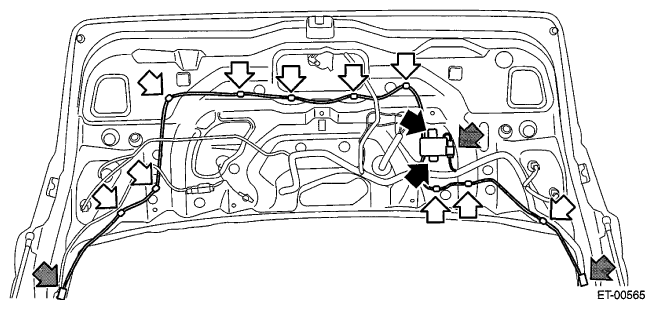

      Fig 1: Locating Noise Suppressor Harness Connector, Clamps And Bolts (Outback Model)
      G06653605Courtesy of SUBARU OF AMERICA, INC.
