DTC B2789 Id Code Box No Response: Wiring Diagram

Push button start system < Refer to appropriate SYSTEM WIRING DIAGRAM. >

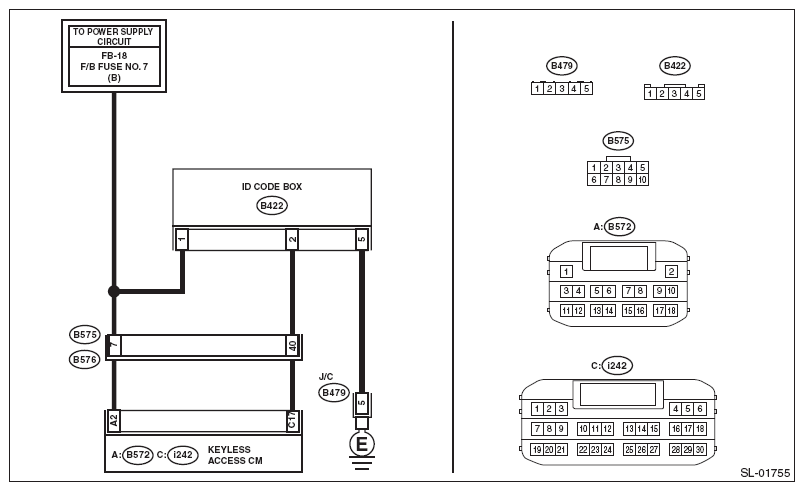

Fig 1: Push Button Start System - Wiring Diagram (ID Code Box No Response)

Courtesy of SUBARU OF AMERICA, INC.
