DTC B2788 IGN1 Input Abnormal: Wiring Diagram

Push button start system < Refer to appropriate SYSTEM WIRING DIAGRAM. >

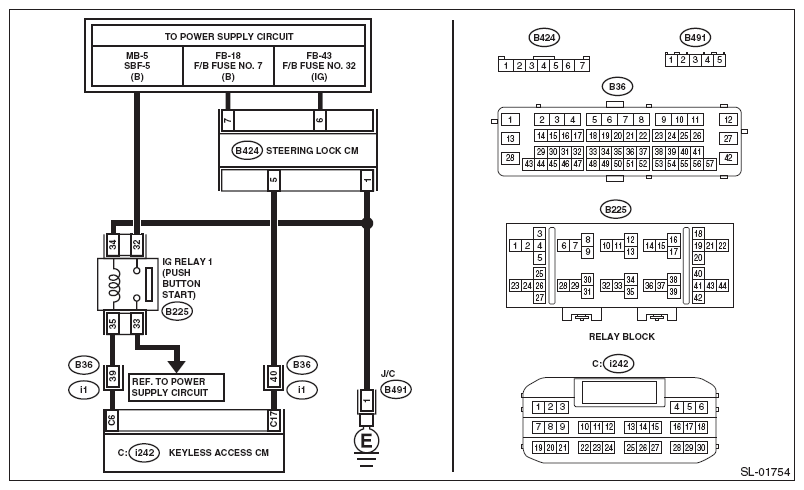

Fig 1: Push Button Start System - Wiring Diagram (Ign1 Input Abnormal)
G08585654Courtesy of SUBARU OF AMERICA, INC.
