DTC B2286 Driving Possible Signal Abnormal: Wiring Diagram

Push button start system < Refer to appropriate SYSTEM WIRING DIAGRAM. >

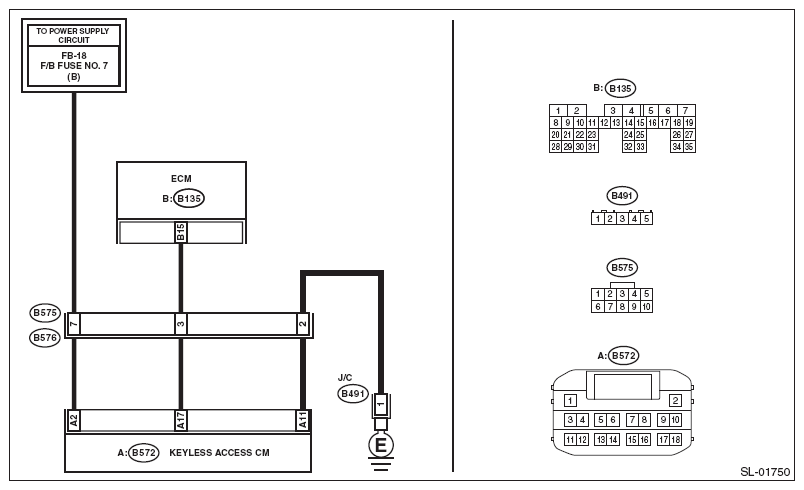

Fig 1: Push Button Start System - Wiring Diagram (Driving Possible Signal Abnormal)
G08585650Courtesy of SUBARU OF AMERICA, INC.
