Front Sub Sensor

CAUTION: Do not reuse mounting bolts and nuts.

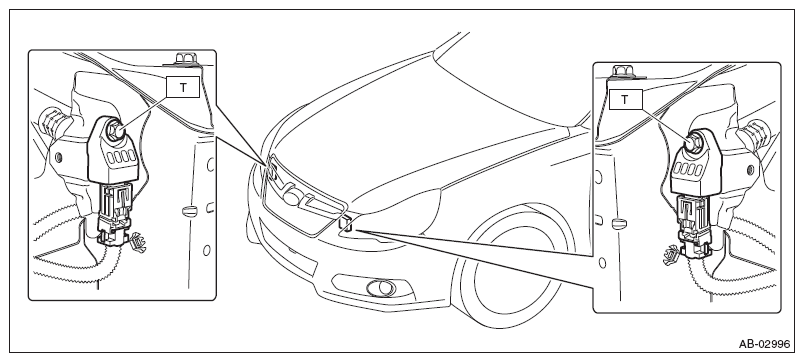

Fig 1: Front Sub Sensor Mounting Bolts And Nuts With Torque Specification
G08583982Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

13 N.m (1.33 kgf-m, 9.6 ft-lb)
