Models With Automatic Air Conditioning

A motor driven actuator is used for air outlet switching, driver and passenger side temperature control, and FRESH/RECIRC switching.
A large sized LCD panel which excels in visibility is used for the control panel.
To eliminate errors due to heat, the cabin temperature sensor is moved from the control panel to the console side panel.

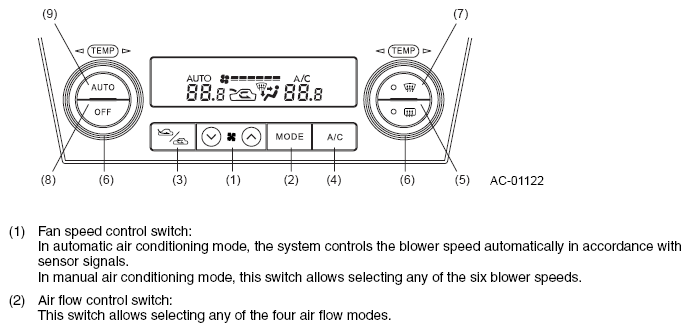

Fig 1: Identifying Automatic Air Conditioning Control Panel Switches

Courtesy of SUBARU OF AMERICA, INC.

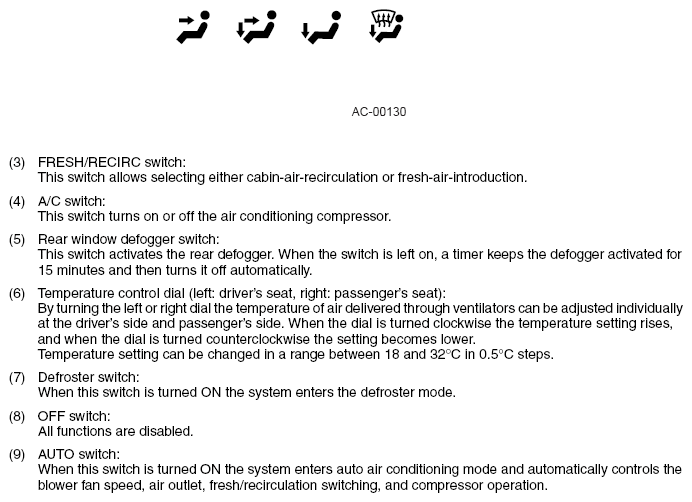

Fig 2: Identifying Air Flow Control Switches (Automatic Air Conditioning)

Courtesy of SUBARU OF AMERICA, INC.
