Component Description

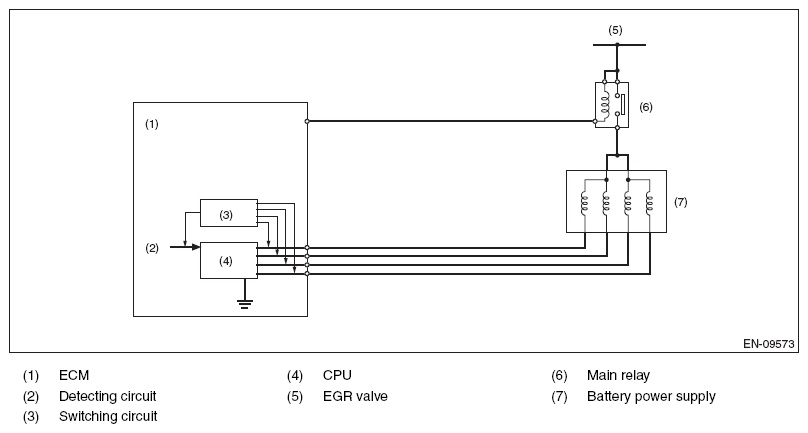

Fig 1: EGR System - Wiring Diagram
G08580820Courtesy of SUBARU OF AMERICA, INC.
