Component Description

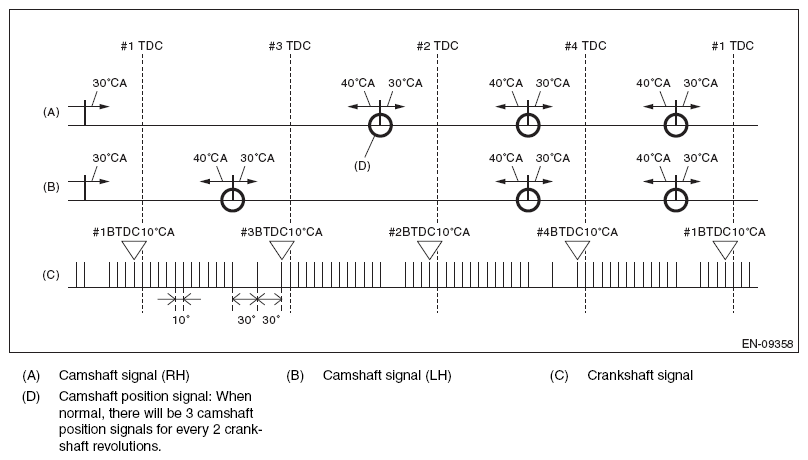

Fig 1: Identifying Crankshaft Signal And Camshaft Signal (RH And LH)
G08580818Courtesy of SUBARU OF AMERICA, INC.
